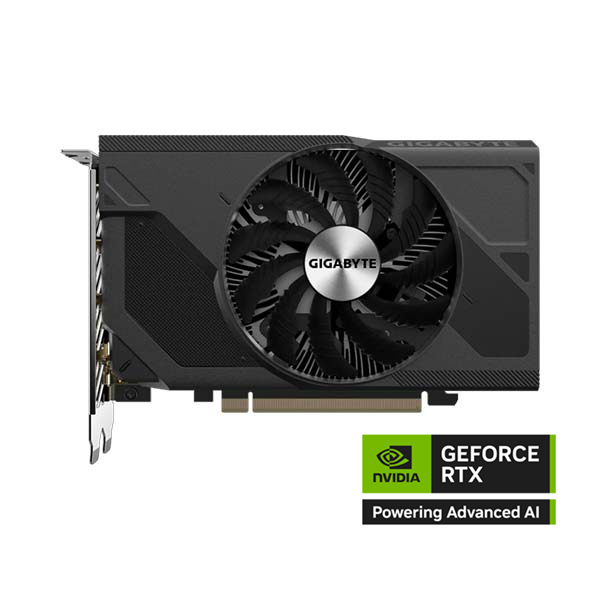

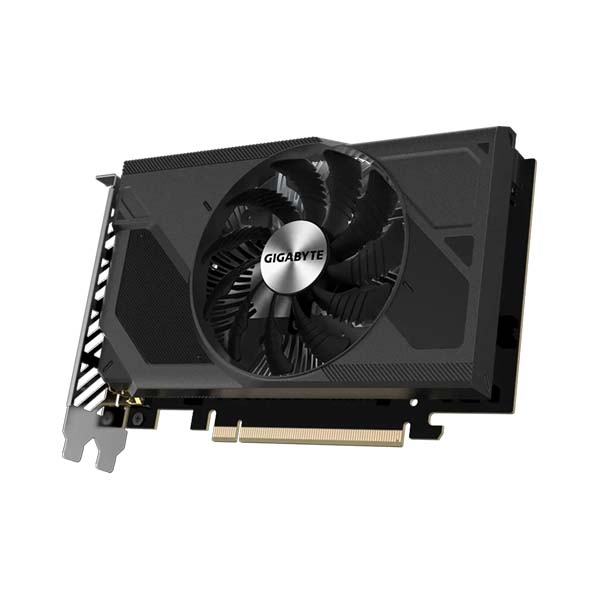

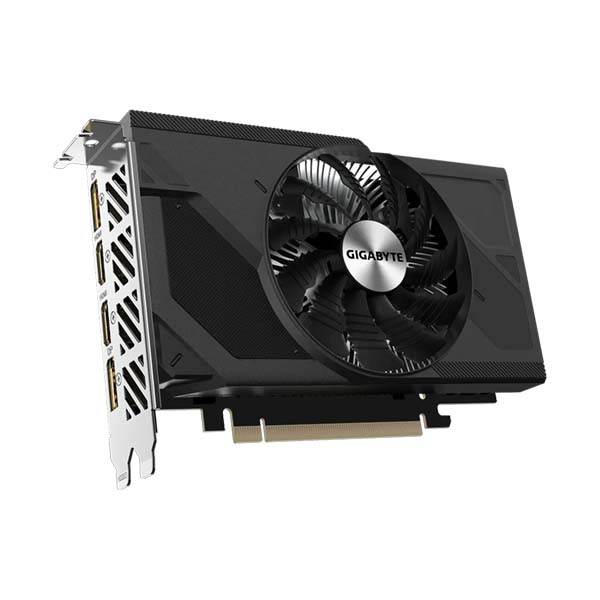

GIGABYTE NVIDIA GEFORCE RTX 4060 D6 8GB GDDR6 DLSS 3 Graphics Card - Black

GIGABYTE

CUSTOM-DESIGNED COOLING SYSTEM

GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.

COMPACT SIZE FOR EASY INSTALLATION

With a length of 170mm, the graphics card can be easily installed in most small cases.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

BUILD STRONG

ULTRA DURABLE

ULTRA COOLING : Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS : Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE  : Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN : Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

• Graphics Processing : GeForce RTX™ 4060

• Core Clock : 2460 MHz

• CUDA® Cores : 3072

• Memory Clock : 17 Gbps

• Memory Size : 8 GB

• Memory Type : GDDR6

• Memory Bus : 128 bit

• Card Bus : PCI-E 4.0

• Digital max resolution : 7680x4320

• Multi-view : 4

• Card size : L=170 W=120 H=40 mm

• PCB Form : ATX

• DirectX : 12 Ultimate

• OpenGL : 4.6

• Recommended PSU :  450W

• Power Connectors : 8 Pin*1

• Output :  DisplayPort 1.4a *2

                            HDMI 2.1a *2

• Accessories : Quick guide
