Interchangeable Front Panels
Addressable RGB Fans & Controller
Four Tempered Glass Panels
Adjustable Graphics Card Support Arm
Watercooling Support
Covers for Clean Building
Rich Connectivity
INTERCHANGEABLE FRONT PANELS
Choose between the mesh front panel for optimized airflow or
the glass option for a balance of aesthetics and performance with the included
accessory.
ADDRESSABLE RGB FANS
Move air stylishly and quietly with two 200mm Addressable
RGB fans controlled by an included Addressable RGB controller.
FOUR TEMPERED GLASS PANELS
Edge-to-edge glass side panels on both sides, a glass top
panel, and a glass front panel offer a clear and comprehensive system view.
GRAPHICS CARD SUPPORT ARM
Relieve the stress of weight and reinforce larger, longer
graphics cards with an included adjustable graphics card support arm.
WATERCOOLING SUPPORT
The front panel is compatible with up to 360mm radiators,
including support for 200mm sized radiators.
The top bracket supports up to 360mm radiators along with
200mm fans.
A dedicated water pump bracket offers mounting options
directly atop the PSU shroud.
COVERS FOR CLEAN BUILDING
A total of 9 covers take clean building to the next level
with a PSU cut out cover that provides the option of showing off your PSU or
leaving it out of sight.
Cable Management Cover
CPU Cut Out Cover
PSU Cable Cover
PSU Cut Out Cover
PSU Shroud with SSD Mounting Support
PSU Shroud with Waterpump Bracket
Cable Cover with SSD- and Reservoir Mounting Support
Clearance Cover for 200mm Radiator Support
Radiator Lid to Accommodate Thicker & Longer Radiators

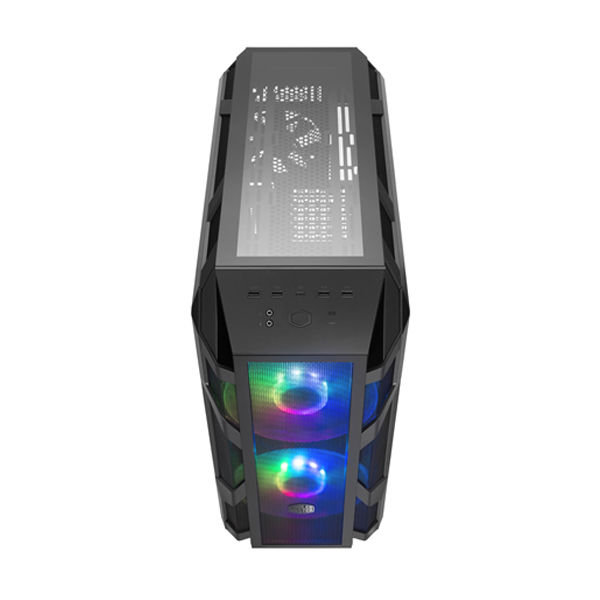

RICH CONNECTIVITY
The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and
four additional USB 3.0 ports. Audio-in and out with support for HD Audio.
The included addressable RGB controller manages the lighting
of the system and can be connected to the reset switch.
USB 3.0 Port
USB 3.1 (Gen 2) Type-C Port
Audio In & Out
Reset Switch & Optional Addressable RGB Controller
Product Name |
MasterCase H500M |
Model Number |
MCM-H500M-IHNN-S00 |
Available Color |
Iron Grey |
Materials |
Outlook: Steel Mesh, Glass |
Dimensions (LxWxH) |
544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch |
Motherboard Support |
Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x
10.7") |
Expansion Slots |
7 + 2 (Support vertical graphics card installation) |
5.25" Drive Bays |
0 |
2.5" / 3.5" Drive Bays |
2 |
2.5" SSD Drive Bays |
6 |
I/O Port |
USB 3.1 Type-C x 1 |
Pre-installed Fan(s) - Front |
200mm ARGB Fan x 2 (Speed: 800RPM / Connector: 3Pin + ARGB
3pin) |
Pre-installed Fan(s) - Rear |
140mm fan x 1 (Speed: 1200RPM / Connector: 3Pin) |
Fan Support - Top |
120 fan x 3 or 140mm/200mm fan x 2 |
Fan Support - Front |
120/140mm fan x 3 or 200mm fan x 2 |
Fan Support - Rear |
120/140mm fan x 1 |
Liquid Cooling Support - Top |
120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness
clearance 43mm) |
Liquid Cooling Support - Front |
120mm, 140mm, 200mm, 240mm, 280mm, 360mm (70mm clearance
w/radiator lid & M.portremoved) |
Liquid Cooling Support - Rear |
120mm, 140mm |
Clearance - CPU Cooler |
190mm |
Clearance - Graphics Card |
412mm |
Clearance - Power Supply |
200mm |
Power Supply Support |
Bottom Mount, ATX PS2 |
EAN Code |
4719512072165 |
UPC Code |
884102044663 |
