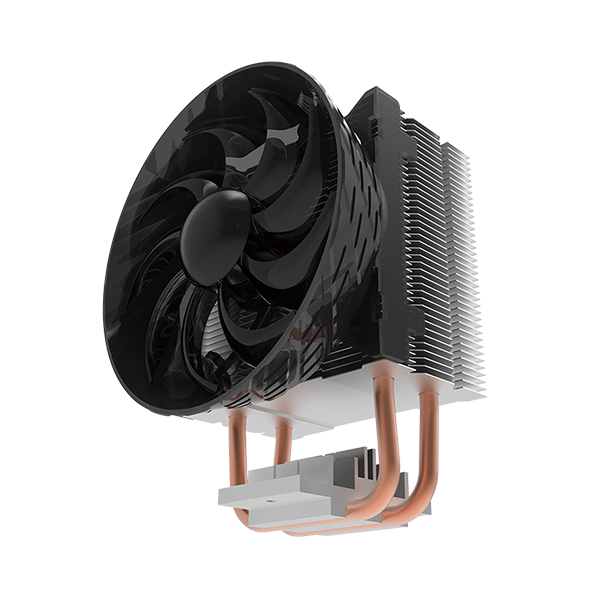

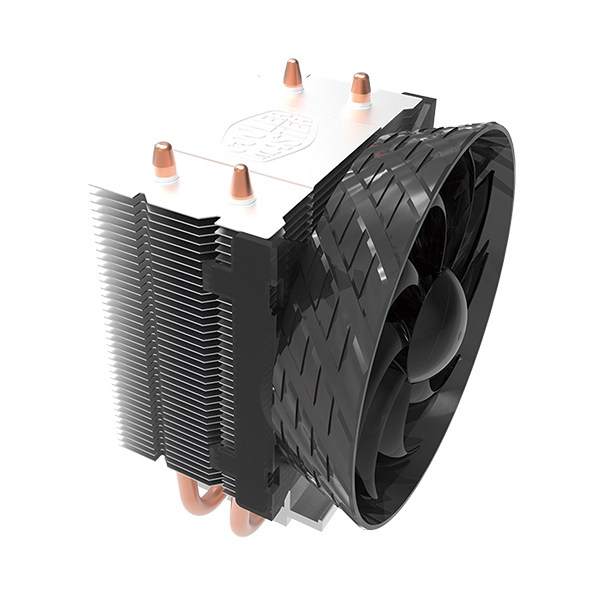

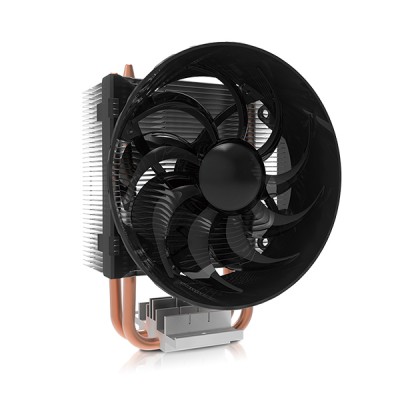

Cooler Master Hyper T200 CPU Cooler

Hyper T200 is a CPU cooler with high efficiency and low sound suppression. Buckle installation is easy to install and remove. It applies for both Intel and AMD systems. With direct contact to heat pipes, Hyper T200 provides the optimized performance For CPU coolers. The fan frame is designed with special anti-dust material, preventing dust from outside effectively.

NOISE LEVEL TESTING SUGGESTIONS

Cooler Master is dedicated to design CPU Coolers with high performance and low dBA. PWM design fan and its anti vibration pad can lower the noise and vibration effectively.

HYPER T200

FAN CLIP

Easy to install and remove Rubber pad is inserted between fan and fin to prevent from vibrating.

RAPID HEAT DISSIPATION

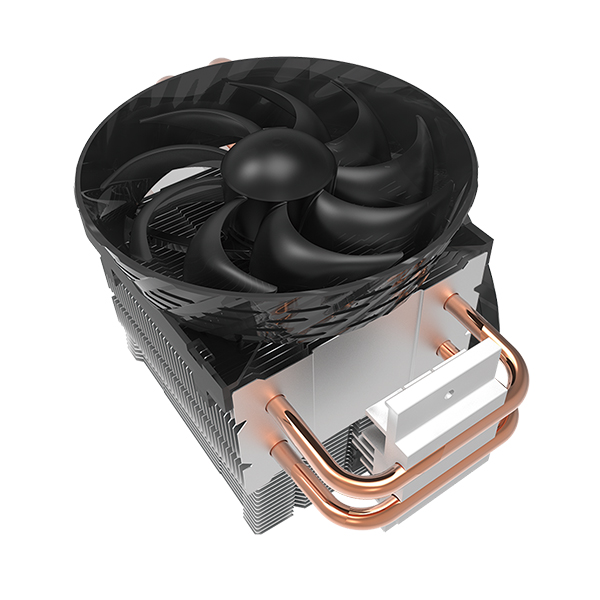

Two 6mm heatpipes with direct contact allow heat to be dissipated quickly and efficiently through the funnel shaped aluminum fins.

HEAT PIPE DIRECT CONTACT TECHNOLOGY

Direct Contact accelerates heat conduction

EASY INSTALLATION

Universal retention brackets are compatible with Intel and AMD socket CPU

Product Specifications

• PRODUCT NUMBER : RR-T200-22PK-R1
• CPU SOCKET : LGA1156, LGA1155, LGA1151, LGA1150, LGA1366, LGA775, AM4, AM3+, AM3, AM2, FM2+, FM2, FM1
• DIMENSIONS (L X W X H) : 112 x 84 x 137 mm / 4.7 x 3.3 x 5.4 inch
• HEAT SINK DIMENSIONS (L X W X H) : 90 x 51 x 133 mm / 3 x 1.7 x 4.4 inch
• HEAT SINK MATERIAL : 2 Heat Pipes, Direct Contact, Aluminum Fins
• HEAT SINK WEIGHT : 248g / 0.55lb
• HEAT PIPE DIMENSIONS : Ø6mm
• FAN DIMENSIONS (L X W X H) : 112.5 x 112.5 x 25 mm / 3.7 x 3.7 x 0.8 inch
• FAN SPEED : 800-2200 RPM (PWM) ± 10%
• FAN AIR FLOW : 30 CFM ± 10%
• FAN AIR PRESSURE : 1.2 mmH2O
• FAN MTTF : 40,000 Hours
• FAN NOISE LEVEL : 31 dBA
• FAN BEARING TYPE : Rifle Bearing
• FAN RATED VOLTAGE : 12V DC
• FAN RATED CURRENT : 0.21A
