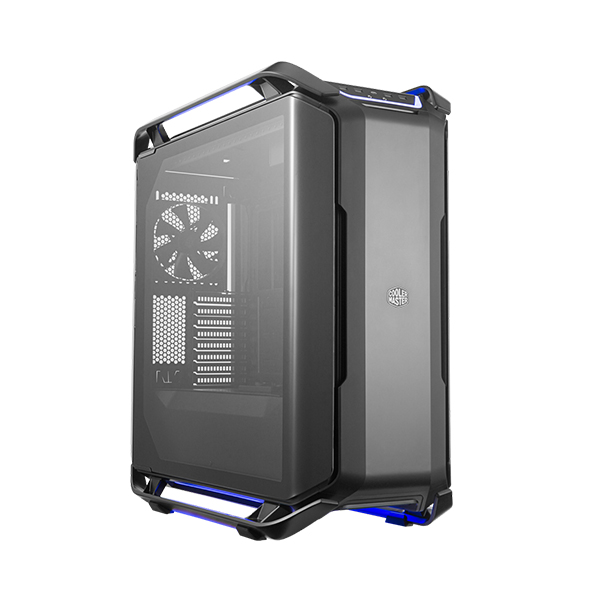

Steel Chassis
Curved Tempered Glass Side Panels
Full Tower Form Factor
Color: Black
Supports E-ATX, ATX, M-ATX & ITX
4x 3.5"/2.5" Combo, 4x 2.5", 1x 5.25" Drive Bays
1x USB 3.1 Gen2 Type-C, 4x USB 3.0 Type-A
Fan Speed, RGB Control Buttons
Maximum Radiator Length: Up to 420mm Front/
CPU Cooler Clearance: 198mm
Maximum GPU Length: Up to 490mm (w/o 3.5" HDD cage)
Extensive Cable Cover System
Flat Radiator Brackets
Highly Versatile Layout
Advancements upon the original COSMOS C700P include the PSU
Shroud, flat radiator brackets, fine mesh panels, cable cover system, and an
extra rear panel all housed in a matte black C700P.

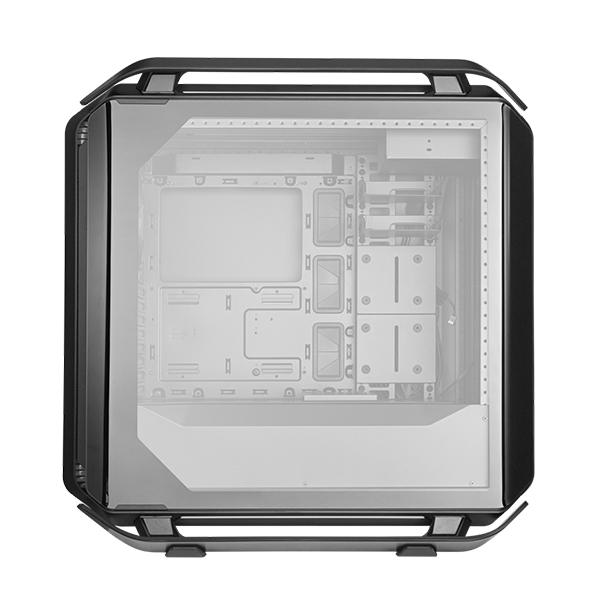

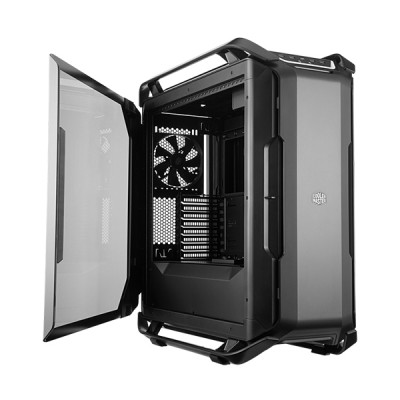

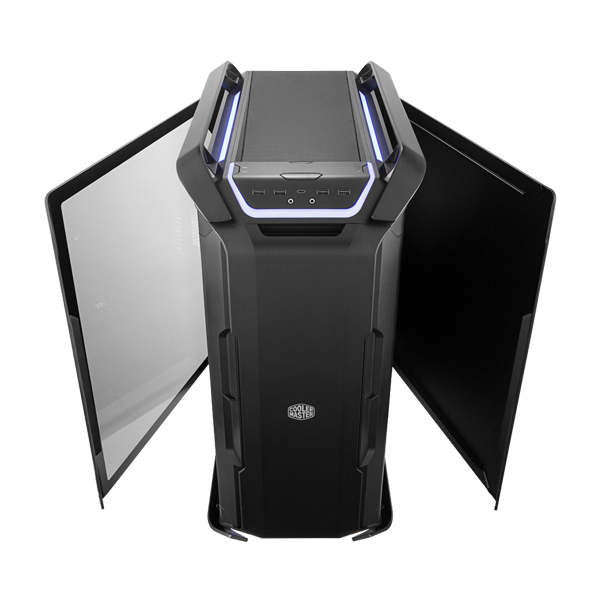

CURVED TEMPERED GLASS SIDE PANEL
A lightly-tinted tempered glass side panel with two curved
edges offer a wide view of the system build.
UPGRADED COVER SYSTEM
The PSU Shroud advances in modularity with two independent
parts while the cable cover system features 3 separate pieces, each with the
capability of mounting storage or a pump for liquid cooling.
FLAT RADIATOR BRACKETS
Flat radiator brackets offer an easier maintenance,
mounting, and removal process for liquid cooling with more clearance for
push-pull configurations.
ALTERNATE REAR PANEL
To support exotic layouts with motherboards or graphics card
oriented vertically, an alternate panel with rubber grommets is included to
allow a pass-through for external cables.
HIGHLY VERSATILE LAYOUT
The unique frame design supports a conventional, chimney,
inverse layout, or a fully customized layout. The motherboard tray is also
removable for installation outside of the chassis.
EXTENSIVE CABLE COVER SYSTEM
The 3 included covers can be placed on either the M. Port or
on the mid-plate, with the ability to mount SSD storage or a reservoir.
RICH CONNECTIVITY
The advanced I/O panel features a USB 3.1 (Gen 2) Type-C
port, four additional USB 3.0 ports, a fan speed control button and an RGB
control button.
COOLING SUPPORT
RADIATORS
Top:120 / 140 / 240 / 280 / 360 / 420mm*
*Remove ODD, maximum thickness clearance 70mm
Front:120 / 140 / 240 / 280 / 360 / 420mm*
*remove ODD
Rear:120 / 140mm
Bottom:120 / 140 / 240mm
COOLING SUPPORT
FANS
Top:120 / 140mm x 3
Front:120 / 140mm x 3
Rear:120 / 140mm x 1
Bottom:120 / 140mm x 2*
*Requires bracket
MOTHERBOARD SUPPORT
Mini-ITX
Micro-ATX
ATX
E-ATX*
*E-ATX up to 12" x 10.7" may impact cable management options.
MODEL
NUMBER : MCC-C700P-KG5N-S00
SERIES
: COSMOS Series
SIZE
: Full Tower
AVAILABLE
COLOR(S) : Black
MATERIALS
: Steel, Curved Tempered Glass
DIMENSIONS
(LXWXH) : 639 x 306 x 651mm
WEIGHT
: 22.2kg
MOTHERBOARD
SUPPORT : E-ATX, ATX, Micro ATX, Mini ITX
EXPANSION
SLOTS : 8
5.25"
DRIVE BAYS : 1
2.5"
/ 3.5" DRIVE BAYS (COMBO) : 4
2.5"
DRIVE BAYS : 4
I/O
PANEL : 4x USB 3.0, 1x USB 3.1 Gen 2 Type-C, 1x 3.5mm Audio Jack, 1x 3.5mm
Mic Jack, Fan Speed, RGB Control Buttons
PRE-INSTALLED
FANS FRONT : 2x 140mm, 1200RPM
PRE-INSTALLED
FANS REAR : 1x 140mm, 1200RPM
FAN
SUPPORT FRONT : 3x 120/140mm
FAN
SUPPORT TOP : 3x 120/140mm
FAN
SUPPORT REAR : 1x 120/140mm
FAN
SUPPORT BOTTOM : 2x 120/140mm*
RADIATOR
SUPPORT FRONT : 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires
removal of ODD cage)
RADIATOR
SUPPORT TOP : 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD,
maximum thickness clearance 70mm)
RADIATOR
SUPPORT REAR : 120mm, 140mm
RADIATOR
SUPPORT BOTTOM : 120mm, 140mm, 240mm
CLEARANCE
- CPU COOLER : 198mm
CLEAR GFX : 320mm (w/ 3.5" HDD cage), 490mm (w/o 3.5" HDD cage)
POWER
SUPPLY SUPPORT : Bottom mount, ATX PS2
DUST
FILTERS : Top, Front, Bottom
LIGHTING
SUPPORT : 1x RGB Connection, RGB Control Board
EAN
CODE : 4719512085028
