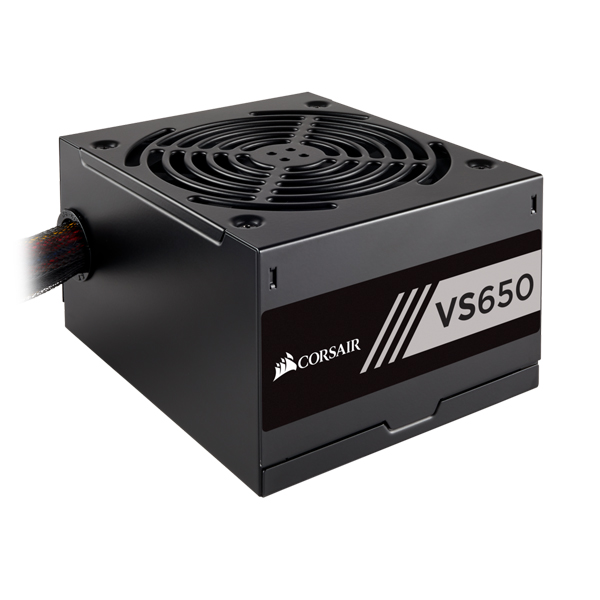

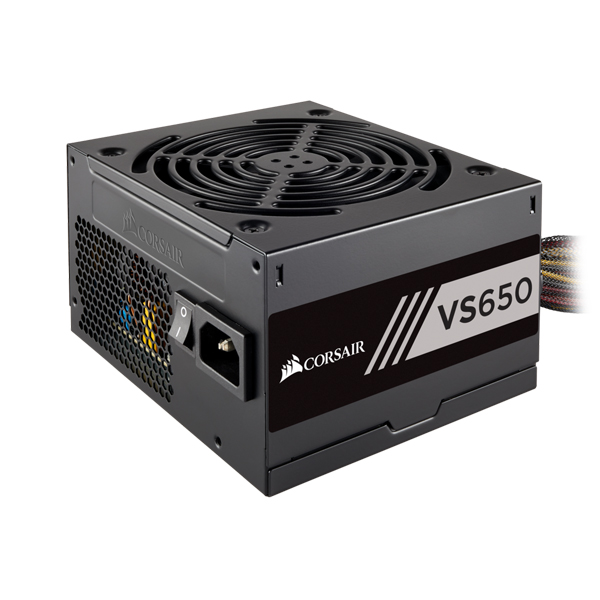

Corsair VS Series VS650 — 650 Watt 80 PLUS White Certified PSU

The CORSAIR VS Series combines stable 80 PLUS efficiency power and affordable pricing from the world’s most trusted name in PC power supplies.

EFFICIENT POWER, RELIABLY DELIVERED

The CORSAIR VS650 delivers stable 80 PLUS efficiency power at an affordable price from the world’s most trusted name in PC power supplies.

REAL POWER

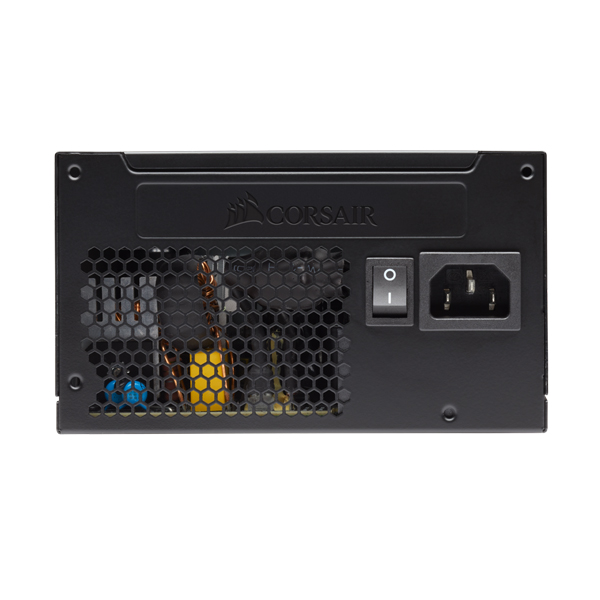

The VS650 delivers a guaranteed 650 Watts of continuous power. With universal input the power supply includes circuitry with components that can tolerate a wide range of mains voltage support (100-240 VAC). Multiple power protection circuits provide for added peace of mind. A dedicated single +12V rail saves you from the hassle of balancing your components across multiple power cables.

DESIGNED WITH BUILDERS IN MIND

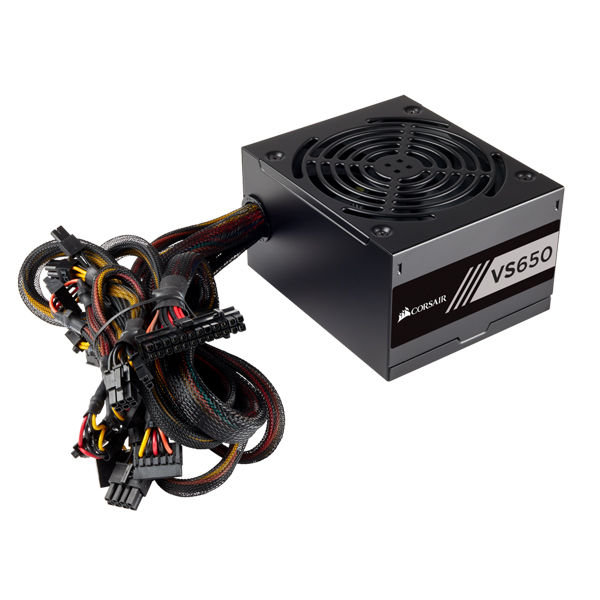

Black cables, cable sleeving and connectors make it easy to build a great looking PC, while a super-compact 125mm deep housing fits in almost any modern PC case for maximum compatibility.

LOW NOISE, HIGH EFFICIENCY

The 120mm fan is thermally controlled, so it only spins up when needed, and is quiet even at full load. The VS650 is 80 PLUS rated for greater efficiency, so it generates less heat, and you’ll enjoy lower energy bills.

RELIABILITY YOU CAN COUNT ON

The VS650 is backed with a comprehensive three-year warranty including legendary CORSAIR technical support and customer service.

Product Specifications :

• ATX Connector : 1
• Adjustable Single/Multi 12V Rail : No
• ATX12V Version : v2.31
• Continuous output rated temperature C : 30°C
• Continuous power W : 650 Watts
• Fan bearing technology : Sleeve
• Fan size mm  : 120mm
• MTBF hours : 100,000 hours
• Multi-GPU ready : No
• 80 PLUS Efficiency : White
• PSU Form Factor : ATX
• Zero RPM Mode : No
• iCUE Compatibility : No
• Cable Type : Sleeved
• Dimensions : 150mm x 86mm x 125mm
• EPS12V Connector : 1
• EPS12V Version : v2.92
• Floppy Connector : 1
• Intel C6C7 sleep state compatible : No
• Modular : No
• PCIe Connector : 2
• SATA Connector : 7
• PATA Connector : 2
• Modern Standby Compatible : No
• Protection Circuits OVP

1. (Over Voltage)
2. UVP (Under Voltage)
3. SCP (Short Circuit)
4. OTP (Over Temp)
5. OPP (Over Power)
