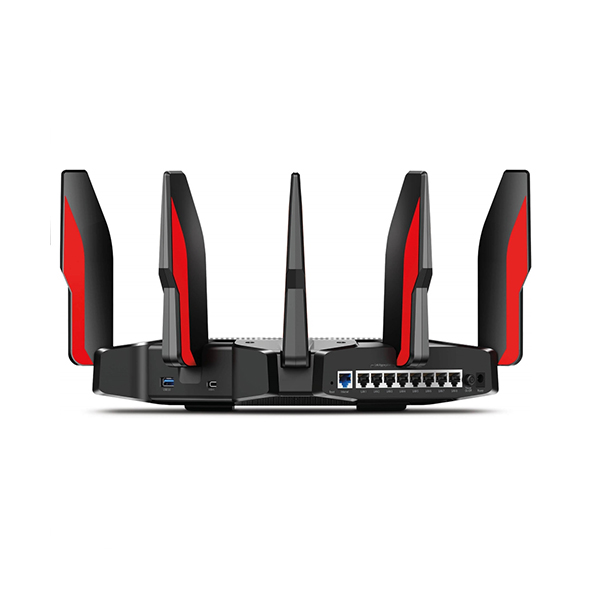

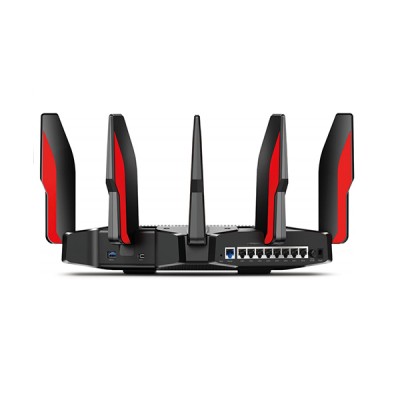

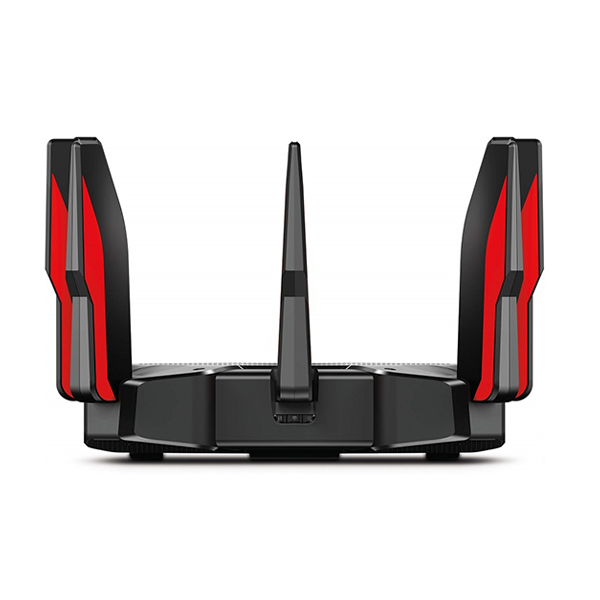

TP-Link AX11000 Next-Gen Tri-Band Gaming Router

AX11000 Next-Gen Tri-Band Gaming Router

LIGHTNING ATTACK TO DEFEAT LATENCY

More connected devices shall bring more fun rather than dragging the performance.1 Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency.2 3 Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

CRUSH THE LAG WIN THE GAME

GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

KNOW YOUR NETWORK

GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

KEEP ALL ELEMENTS SECURITY

GAME PROTECTOR keeps your accounts and system safe. This free lifetime subscription of the HomeCareâ„¢ security system delivers comprehensive antivirus protection that ensures your total security while gaming online.

GAME ON THE FAST LANE

GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.

DFS expands available channel automatically, get on the more vacant lane and boost the game.

BATTLE-TESTED HARDWARE

Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

READY FOR TODAY AND TOMORROW'S SMART HOME

With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Specifications

WIRELESS

Standards Wi-Fi 6

                        IEEE 802.11ax/ac/n/a 5 GHz

                        IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

• AX11000

• 5 GHz : 4804 Mbps (802.11ax, HE160)

• 5 GHz : 4804 Mbps (802.11ax, HE160)

• 2.4 GHz : 1148 Mbps (802.11ax)

WiFi Range

• 4-6 Bedroom Houses

• 8 × Detachable High-Performance Antennas

• Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming

• Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM

• Improves transmission power to strengthen signal coverage

• 4T4R

• Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity

• Very High

• Tri-Band : Allocate devices to different bands for optimal performance

• 4×4 MU-MIMO : Simultaneously communicates with multiple MU-MIMO clients

• OFDMA : Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness : Improves network efficiency by limiting excessive occupation

• DFS : Access an extra band to reduce congestion

• 12 Streams : Connect your devices to more bandwidth

• Router Mode
• Access Point Mode

HARDWARE

• Processor : 1.8 GHz 64 Bit Quad-Core CPU

• Ethernet Ports : 1 × 2.5 Gbps WAN Port

                                        8 × Gigabit LAN Ports

• Static Link Aggregation (LAG) available with 2× LAN ports

• USB Support : 1 × USB-C 3.0 Port

                                    1 × USB-A 3.0 Port

Supported Partition Formats:

• NTFS, exFAT, HFS+, FAT32

• Supported Functions:

• Apple Time Machine

• FTP Server

• Media Server

• Samba Server

Buttons

• Wi-Fi On/Off Button

• Power On/Off Button

• LED On/Off Button

• WPS Button

• Reset Button

Power

• 12 V ⎓ 5 A

SECURITY

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeCareâ„¢ Antivirus

• Malicious Site Checker

• Port Intrusion Prevention

• Infected Device Isolation

• Notification and Log

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN

• PPTP

• Protocols IPv4

• IPv6

Game Center

• Game Accelerator

• Detects and optimizes gaming streams to keep latency as low as possible

• Game Statistics

• Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

• Game Protector

• Keep your accounts and system safe with HomeCareâ„¢ antivirus protection

• HomeCareâ„¢

• Learn More>

• HomeCareâ„¢ Parental Controls

• Custom Profiles

• Content Filtering

• App Block

• URL Filtering

• Time Limit

• Time Schedule (Bedtime)

• Log Insight

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

• Game Accelerator QoS

• QoS by Device

• HomeCareâ„¢ QoS

• QoS by Application

• Cloud Service Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

• Tether App

• Webpage

• Check Web Emulator>

• Dimensions (W×D×H) : 11.3 × 11.3 × 7.2 in

                                                  (288 × 288 × 184 mm)

Package Contents

• Wi-Fi Router Archer AX11000

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

OTHER

• System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

• Cable or DSL Modem (if needed)

• Subscription with an internet service provider (for internet access)

• FCC, RoHS

Environment

• Operating Temperature : 0℃~40℃ (32℉ ~104℉)

• Storage Temperature : -40℃~70℃ (-40℉ ~158℉)

• Operating Humidity : 10%~90% non-condensing

• Storage Humidity : 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power FCC:

                                        <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

• 5 GHz_1:

• 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm

• 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm

• 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm

• 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm

• 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm

• 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm

• 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm

• 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm

• 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm

• 5 GHz_2:

• 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm

• 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm

• 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm

• 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm

• 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm

• 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm

• 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm

• 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm

• 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm

• 2.4 GHz：

• 11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm

• 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm

• 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm

• 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm

• 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm

• 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm

• 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
