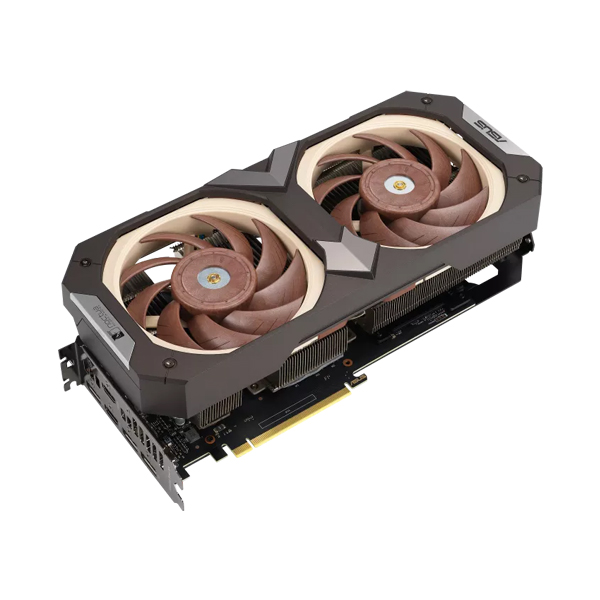

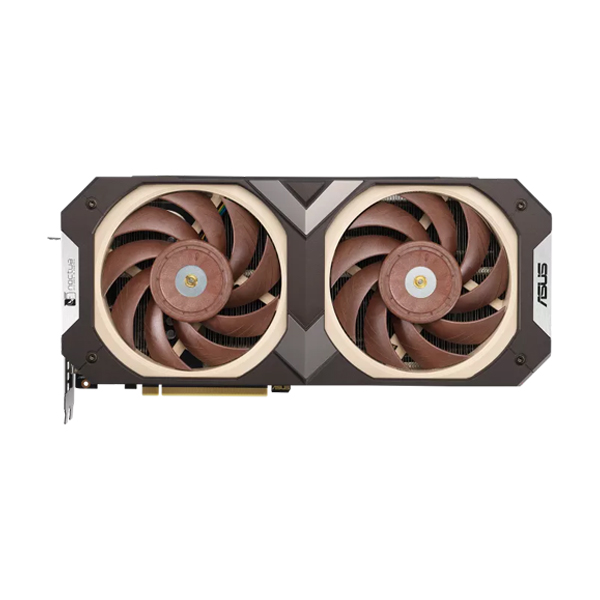

ASUS GeForce RTX 3070 Noctua OC Edition LHR 8GB GDDR6 Graphics Card

ASUS and Noctua have teamed up to produce the quietest air-cooled graphics card in its class.

ASUS GEFORCE RTX™ 3070 NOCTUA EDITION​

The Coolest & Quietest Graphics Card in Its Class

ASUS and Noctua engineers teamed up to pair two iconic NF-A12x25 PWM fans with a tailor-made thermal solution that rides on a custom PCB. This potent pairing allows the ASUS GeForce RTX 3070 Noctua Edition to operate at lower GPU temperatures and produce less noise than any air-cooled graphics card in its class.

Cool and Quiet

From shroud to heatsink, every aspect of the cooler is optimized to set new standards for thermals and acoustics.

Noctua NF-A12x25 PWM Fans

The two Noctua NF-A12x25 120mm fans integrate a low-resonance Sterrox® liquid-crystal polymer (LCP) fan impeller, metal-reinforced motor hub, stabilized bearings, and custom low-noise PWM controller to deliver performance you can rely on day in, day out.

Tailor-made Heatsink

Card Enhancements

Additional upgrades first championed on ROG Strix and TUF Gaming GeForce RTX 30-series graphics cards allow the ASUS GeForce RTX 3070 Noctua Edition to deliver performance and durability at every level.

0dB Technology

Auto-Extreme Technology

Dual BIOS

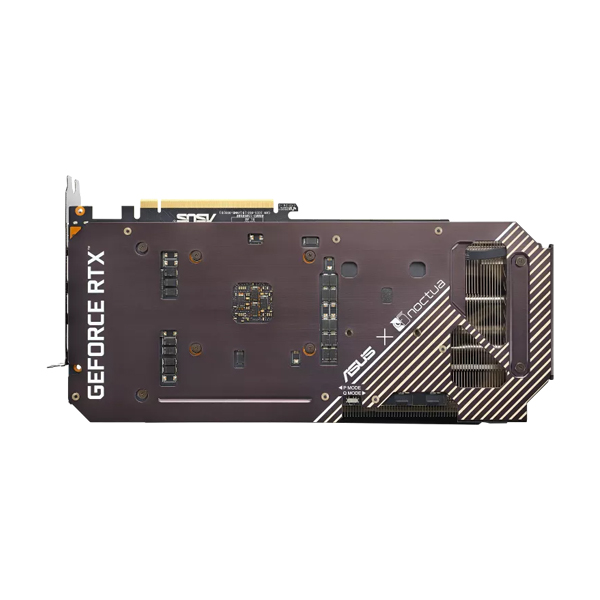

Armored Underside

GPU Tweak II

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Free 1 Month of Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products.*

Specifications

• Graphic Engine : NVIDIA® GeForce RTXâ„¢ 3070

• Bus Standard : PCI Express 4.0

• OpenGL : OpenGL®4.6

• Video Memory : 8GB GDDR6

• Engine Clock : OC mode: 1845 MHz (Boost Clock)

                                        Gaming mode: 1815 MHz (Boost Clock)

• CUDA Core : 5888

• Memory Speed : 14 Gbps

• Memory Interface : 256-bit

• Resolution : Digital Max Resolution 7680 x 4320

• Interface : Yes x 2 (Native HDMI 2.1)

                                Yes x 3 (Native DisplayPort 1.4a)

                                HDCP Support Yes (2.3)

• Maximum Display Support : 4

• NVlink/ Crossfire Support : No

• Accessories

                                        1 x Collection card

                                        1 x Speedsetup Manual

• Software : ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

• Dimensions

                                310 x 147 x 87.5 mm

                                12.20 x 5.79 x 3.45 inches

• Recommended PSU : 750W

• Power Connectors : 2 x 8-pin

• Slot : 4.3 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* The slogan is based on internal testing conducted before September 2021. The testing environment and conditions are detailed below:

．Ambient temperature of 27° Celsius

．Display resolution of 1080p

．Running 3DMark 11 software

．Noise measured 10 cm away from the graphics card

．Open chassis design

Actual performance and acoustics depend on usage, environment, and other factors.
