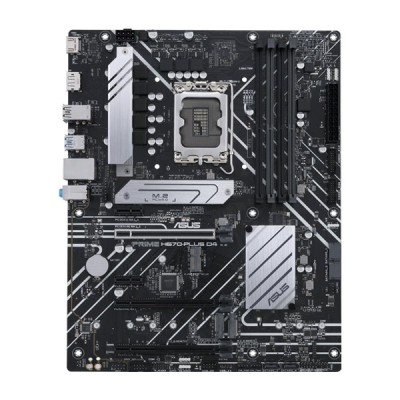

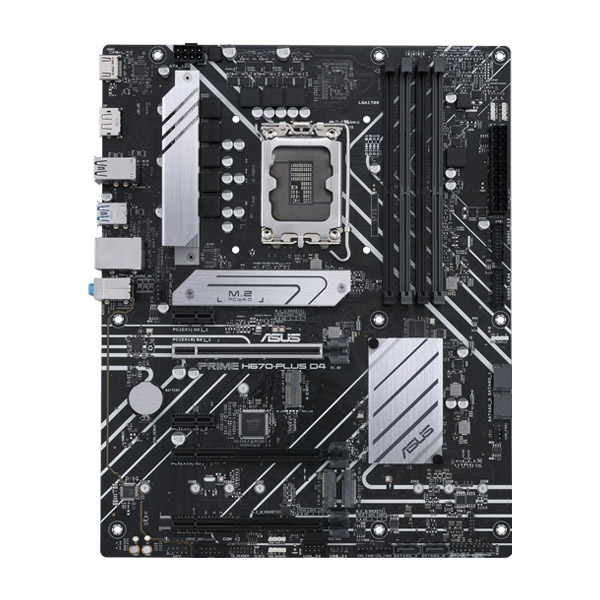

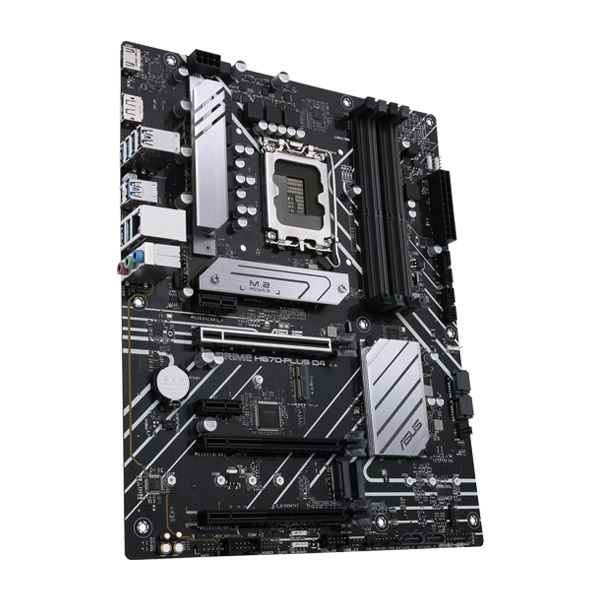

    ASUS PRIME H670-PLUS DDR4 Motherboard

    Item #7205
    Brand
    : Asus
    Part #
    : 90MB18W0-M0EAY0
    Availability
    : Out Of Stock
  • Give A Rating

    • Intel® LGA 1700 socket : Ready for 12th Gen Intel® processors

    • Ultrafast connectivity : PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderboltâ„¢ 4 support

    • Comprehensive cooling : VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

    • ASUS OptiMem : Careful routing of traces and vias to preserve signal integrity for improved memory stability

    ASUS PRIME H670-PLUS DDR4 Motherboard

    Intel® H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C®, Realtek 2.5Gb Ethernet, Thunderbolt™ 4 header support, DisplayPort, HDMI®, Aura Sync

    FLEXIBILITY
    Comprehensive controls form the foundation of the ASUS Prime series. The Prime H670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
    All-Around Energy Efficiency
    The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
    UEFI BIOS
    The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
    Advanced Tuning for Serious Tweakers
    An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
    COOLING
    Prime H670 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
    M.2 Heatsink
    M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
    Cooler by Design
    Prime H670 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
    Multiple Temperature Sources
    Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
    PERFORMANCE
    Prime H670 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H670 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
    Robust Power Design
    Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime H670-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.
    ProCool Connector
    Proprietary connector augments the motherboard's link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
    DDR4 5066(OC)
    Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
    Storage
    Three M.2 slots (up to 64 Gbps)
    Prime H670-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
    * Actual transmission speeds will be lower than the theoretical maximum speed.
    PCIe® 4.0 Slot
    Prime H670 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
    Aura Sync
    A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
    Q-LED

    The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.

    Specifications

    CPU
    • Intel® Socket LGA1700 for 12th Gen Intel® Coreâ„¢, Pentium® Gold and Celeron® Processors
    • Intel® Socket LGA1700 for 12th Gen Intel® Coreâ„¢, Pentium® Gold and Celeron® Processors*
    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    • * Refer to www.asus.com for CPU support list.
    • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    • H670
    • Intel® H670 Chipset
    Memory
    • 4 x DIMM, Max. 128GB, DDR4
    • 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*"
    • Dual Channel Memory Architecture
    • Supports Intel® Extreme Memory Profile (XMP)
    • OptiMem
    • *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
    Graphics
    • 1 x DisplayPort**
    • 1 x HDMI® port***
    • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    • ***Supports 4K@60Hz as specified in HDMI 2.1.
    • **** VGA resolution support depends on processors' resolution.
    Expansion Slots
    • Intel® 12th Gen Processors*
    • 1 x PCIe 4.0 x16 slot
    • Intel® H670 Chipset**
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
    • 1 x PCIe 3.0 x16 slot (supports x4 mode)
    • 2 x PCIe 3.0 x1 slots
    • * Please check PCIe bifurcation table in support site.
    • ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
    Storage
    • Intel® 12th Gen Processors
    • M.2_1 slot (Key M), type 2242/2260/2280
    • - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
    • Intel® H670 Chipset**
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    • 4 x SATA 6Gb/s ports
    • * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
    • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
    Ethernet
    • 1 x Realtek 2.5Gb Ethernet
    • ASUS LANGuard
    Wireless & Bluetooth
    • M.2 slot only (Key E, CNVi & PCIe)*
    • *Wi-Fi module is sold separately.
    USB
    Rear USB (Total 8 ports)
    • 1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
    Front USB:Total 7 ports
    • Front USB (Total 7 ports)
    • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
    • 1 x USB 2.0 header supports additional 1 USB 2.0 port
    Audio
    • Realtek 7.1 Surround Sound High Definition Audio CODEC*
    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • - Supports up to 24-Bit/192 kHz playback
    • - Audio Features
    • - Audio Shielding
    • - Power pre-regulator reduces power input noise to ensure consistent performance
    • - Premium audio capacitors
    • - Dedicated audio PCB layers
    • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Back Panel I/O Ports
    • 1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
    • 1 x DisplayPort
    • 1 x HDMI® port
    • 1 x Realtek 2.5Gb Ethernet port
    • 3 x Audio jacks
    Internal I/O Connectors
    • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
    • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • Storage related
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
    • USB
    • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
    • 1 x USB 2.0 header supports additional 1 USB 2.0 port
    • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 2 x AURA RGB headers
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x M.2 slot (Key E)
    • 1 x S/PDIF Out header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderboltâ„¢ header
    Special Features
    • ASUS 5X PROTECTION III
    • - DIGI+ VRM
    • - Enhanced DRAM Overcurrent Protection
    • - ESD Guards
    • - LANGuard
    • - Overvoltage Protection
    • - SafeSlot Core+
    • - Stainless-Steel Back I/O
    • ASUS Q-Design
    • - Q-DIMM
    • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • - Q-Slot
    • ASUS Thermal Solution
    • - M.2 heatsink
    • - VRM heatsink design
    • AURA Sync
    • - AURA RGB headers
    • - Addressable Gen 2 headers
    Software Features
    • ASUS Exclusive Software
    • Armoury Crate
    • - AURA Creator
    • - AURA Sync
    • - Fan Xpert 2+
    • AI Suite 3
    • - Performance And Power Saving Utility
    • TurboV EVO
    • EPU
    • DIGI+ VRM
    • ASUS CPU-Z
    • Norton Anti-virus software (Free Trial version)
    • WinRAR
    • UEFI BIOS
    • ASUS EZ DIY
    • - ASUS CrashFree BIOS 3
    • - ASUS EZ Flash 3
    • - ASUS UEFI BIOS EZ Mode
    BIOS
    • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
    Manageability
    • WOL by PME, PXE
    Accessories
    • Cables
    • 2 x SATA 6Gb/s cables
    • Miscellaneous
    • 1 x I/O Shield
    • 1 x M.2 Rubber Package
    • 2 x M.2 SSD screw packages
    • 1 x M.2 Key E screw package
    • Installation Media
    • 1 x Support DVD
    • Documentation
    • 1 x User guide
    Operating System
    • Windows® 11 64-bit, Windows® 10 64-bit
    Form Factor
    • ATX
    • 30.5cm x 24.4cm
