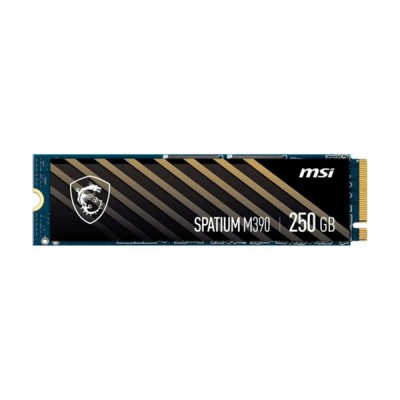

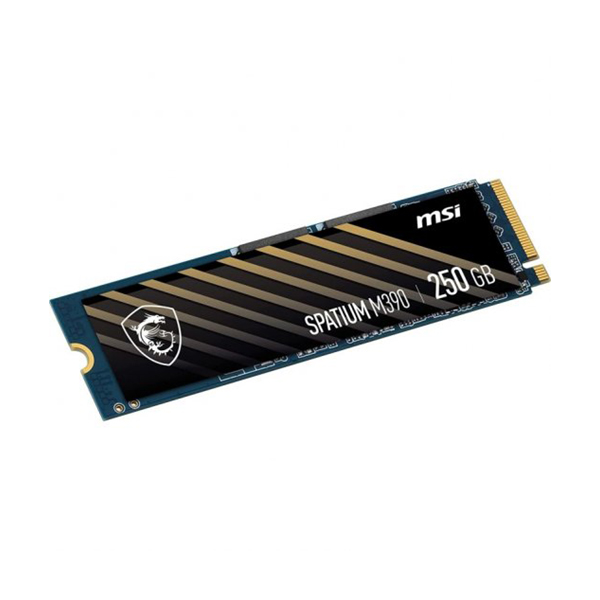

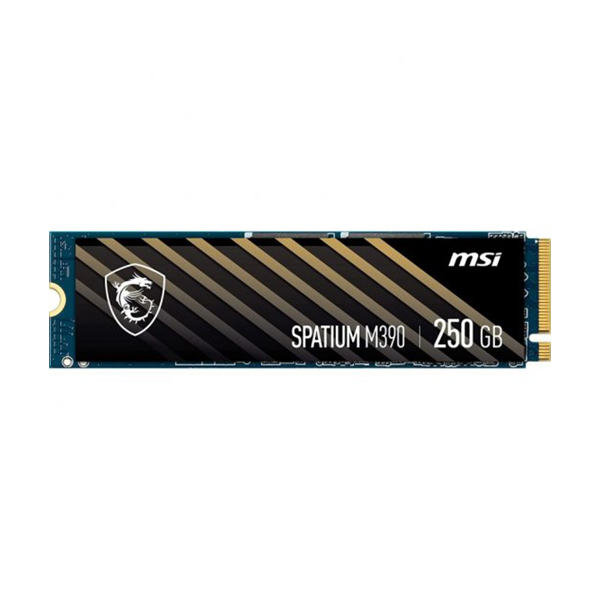

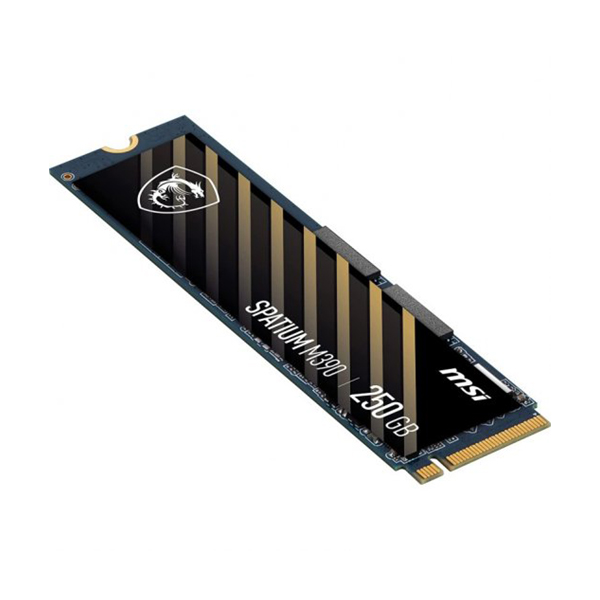

SPATIUM M390 NVMe M.2
PCIe Gen3x4 interface and complies with the NVMe 1.4 standard
Sequential Read speeds up to 3300MB/s and Write speeds up to 3000MB/s
Up to 1200 TBW
Built-in data security and error-correction capabilities
250GB to 2TB capacities in M.2 2280 form factor
Suitable for both desktop and notebook
M390 CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
A Need for Speed!
Optimized for the PCIe Gen3 interface, SPATIUM M390 SSD reaches read/write speeds up to 3300/3000 MB/s, allowing for rapid data transfer and shortened game load times.
Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
Don't Stop Gaming
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
Take Care of Your Data
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
Model Name : SPATIUM M390 NVMe M.2
Capacity : 250GB
Controller : PHISON E15T
Flash Memory : 3D NAND
Form Factor : M.2 2280
Interface : PCIe Gen3x4, NVMe 1.4
Compatibility : PCIe Gen3 / Gen2 / Gen1
Dimensions : 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) : 3300
Sequential Write up to (MB/s) : 1200
Random Read 4KB up to (IOPS) : 150K
Random Write 4KB up to (IOPS) : 300K
Maximum Operating Power (W) : 3.2
Idle Power PS3 (mW) : 30
Low Power L1.2 (mW) : 5
Operating Temperatures : 0°C – 70°C
Storage Temperatures : -40°C – 85°C
Terabytes Written (TBW) : 150
Mean Time Between Failure (MTBF) : Up to 1,500,000 Hours
Advanced Features : TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
