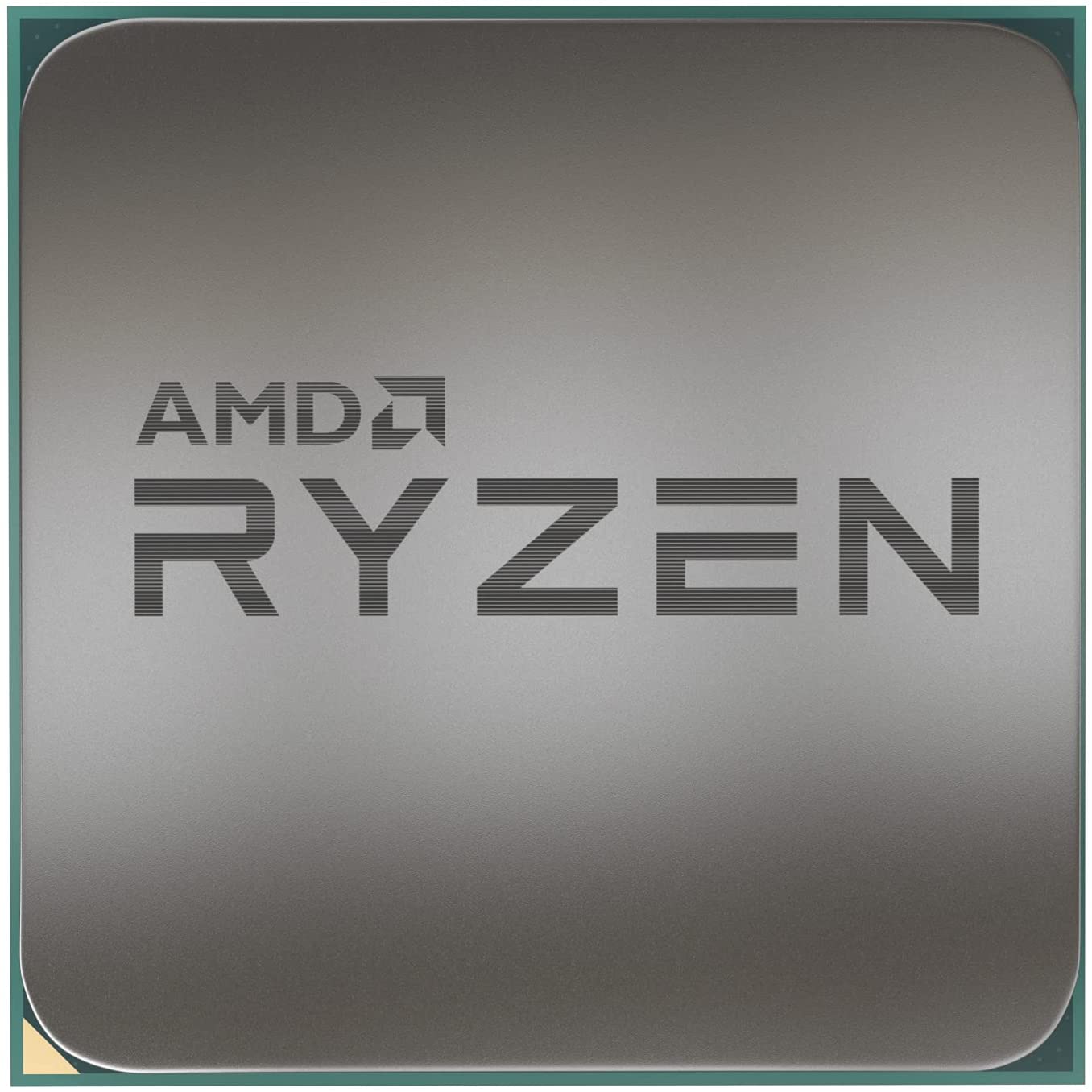

AMD Ryzen 7 5700X 8-Core 3.4GHz  AM4 CPU Desktop Processor

AMD StoreMI Technology

A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzenâ„¢ processor.

AMD "Zen 3" Core Architecture

The fastest cores in the world for PC gamers.

AMD Ryzenâ„¢ VR-Ready Premium

For the best possible VR experiences, AMD offers select Ryzenâ„¢ VR-Ready Premium processors.

Specifications

• Platform : Desktop

• Market Segment : Enthusiast Desktop

• Product Family : AMD Ryzenâ„¢ Processors

• Product Line : AMD Ryzenâ„¢ 7 Desktop Processors

• Consumer Use : Yes

• Regional Availability : Global, China, NA, EMEA, APJ, LATAM

• Former Codename : "Vermeer"

• Architecture : "Zen 3"

• # of CPU Cores : 8

• Multithreading (SMT) : Yes

• # of Threads : 16

• Max. Boost Clock : Up to 4.6GHz

• Base Clock : 3.4GHz

• L1 Cache : 512KB

• L2 Cache : 4MB

• L3 Cache : 32MB

• Default TDP : 65W

• Processor Technology for CPU Cores : TSMC 7nm FinFET

• Processor Technology for I/O Die : 12nm (Globalfoundries)

• CPU Compute Die (CCD) Size : 74mm²

• I/O Die (IOD) Size : 125mm²

• Package Die Count : 2

• Unlocked for Overclocking : Yes

• CPU Socket : AM4

• Socket Count : 1P

• Supporting Chipsets

                                                    X570
                                                    X470
                                                    X370
                                                    B550
                                                    B450
                                                    B350
                                                    A520

• CPU Boost Technology : Precision Boost 2

• Instruction Set : x86-64

• Supported Extensions : AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

• Thermal Solution (PIB)  : Not included

• Max. Operating Temperature (Tjmax) : 90°C

• *OS Support : Windows 11 - 64-Bit Edition

                                        Windows 10 - 64-Bit Edition

                                        RHEL x86 64-Bit

                                        Ubuntu x86 64-Bit

                                        *Operating System (OS) support will vary by manufacturer.

Connectivity

• USB Type-C® Support  : Yes

• Native USB 3.2 Gen 2 (10Gbps) Ports : 4

• Native USB 3.2 Gen 1 (5Gbps) Ports : 0

• Native USB 2.0 (480Mbps) Ports : 0

• Native SATA Ports : 2

• PCI Express® Version : PCIe 4.0

• Native PCIe® Lanes (Total/Usable) : 24/20

• Additional Usable PCIe Lanes from Motherboard : AMD X570    16x Gen 4

                                                                                                        AMD X470     2x Gen 3
                                                                                                        AMD X470     8x Gen 2

• NVMe Support : Boot, RAID0, RAID1, RAID10

• System Memory Type : DDR4

• Memory Channels : 2

• Max. Memory : 128GB

• System Memory Subtype : UDIMM

• System Memory Specification : Up to 3200MHz

• Max Memory Speed : 2x1R     DDR4-3200

                                                    2x2R    DDR4-3200
                                                    4x1R    DDR4-2933
                                                    4x2R    DDR4-2667

• ECC Support : Yes (Requires mobo support)

• Integrated Graphics : No
• Graphics Model : Discrete Graphics Card Required

Product IDs

• Product ID Boxed : 100-100000926WOF
• Product ID Tray : 100-000000926

Key Features

Supported Technologies :

• AMD StoreMI Technology

• AMD "Zen 3" Core Architecture

• AMD Ryzenâ„¢ VR-Ready Premium
