Socket AM4
Base Speed - 3.4 GHz | Max Speed - 4.5 GHz
8 Cores (16 Threads)
Cooler Not Inlcuded
7nm 105W
96MB L3 Cache
4MB L2 Cache
Windows 11 Supported
AMD 3D V-Cacheâ„¢ Technology
Unleash even more gaming performance with 3D-stacked L3 cache

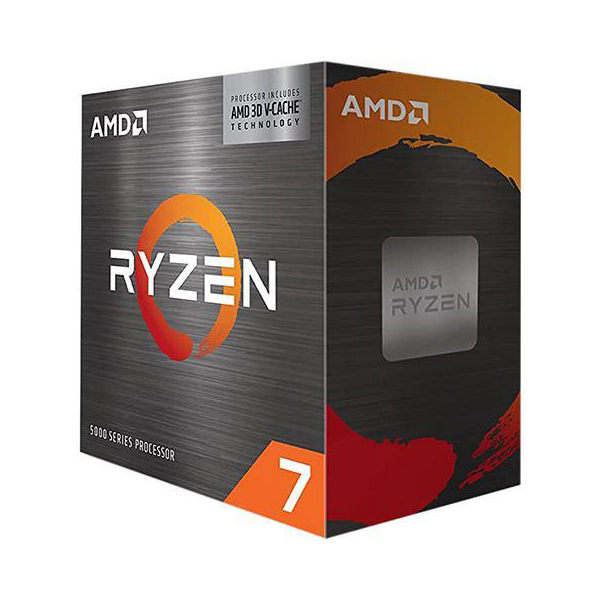

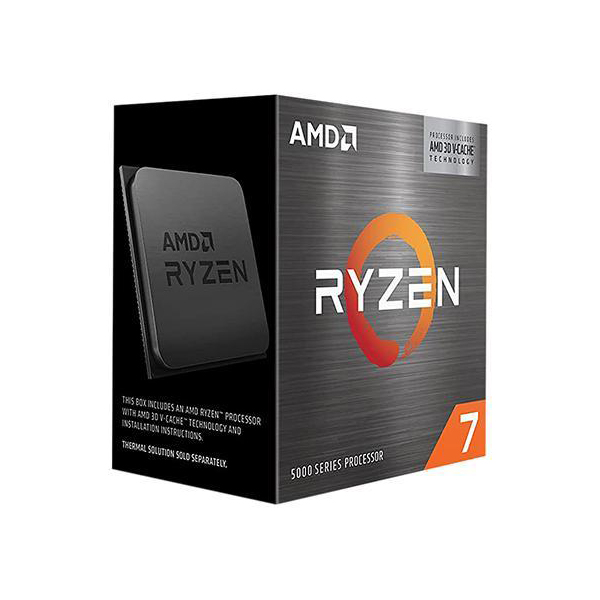

The AMD Ryzenâ„¢ 7 5800X3D is the first desktop processor with stacked
L3 cache, delivering unmatched 96MB of L3 cache paired with incredibly
fast cores to create the world’s fastest gaming desktop processor.
AMD 3D V-Cacheâ„¢ Technology
Innovative 3D stacking technology for server and desktop applications.
Windows® 11 Gaming
AMD powered PCs with Windows® 11 enable the ultimate gaming experience
AMD "Zen 3" Core Architecture
The fastest cores in the world for PC gamers.
Platform : Desktop
Market Segment : Enthusiast Desktop
Product Family : AMD Ryzenâ„¢ Processors
Product Line : AMD Ryzenâ„¢ 7 Desktop Processors
AMD PRO Technologies : No
Consumer Use : Yes
Regional Availability : Global, China, NA, EMEA, APJ, LATAM
Former Codename : "Vermeer"
Architecture : "Zen 3"
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.5GHz
Base Clock : 3.4GHz
L1 Cache : 512KB
L2 Cache : 4MB
L3 Cache : 96MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 1
CPU Socket : AM4
Socket Count : 1P
Supporting Chipsets : X570
X470
B550
B450
A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) : Not included
Max. Operating Temperature (Tjmax) : 90°C
*OS Support : Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition : RHEL x86 64-Bit
Ubuntu x86 64-Bit : *Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support : Yes
Native USB 3.2 Gen 2 (10Gbps) Ports : 4
Native USB 3.2 Gen 1 (5Gbps) Ports :0
Native USB 2.0 (480Mbps) Ports : 0
Native SATA Ports : 2
PCI Express® Version : PCIe 4.0
Native PCIe® Lanes (Total/Usable) : 24/20
Additional Usable PCIe Lanes from Motherboard : AMD X570 16x Gen 4
AMD X470 2x Gen 3
AMD X470 8x Gen 2
NVMe Support : Boot, RAID0, RAID1, RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128GB
System Memory Subtype : UDIMM
Max Memory Speed : 2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
Graphics Capabilities
Integrated Graphics : No
Graphics Model : Discrete Graphics Card Required
Key Features
Windows® 11 Gaming
AMD "Zen 3" Core Architecture
AMD Ryzenâ„¢ VR-Ready Premium
