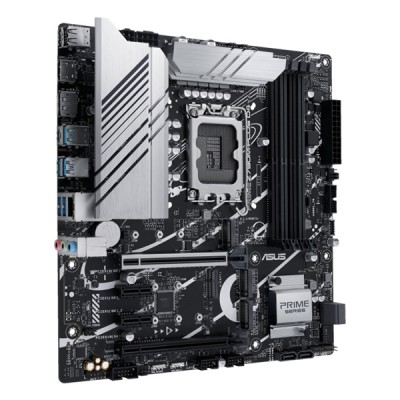

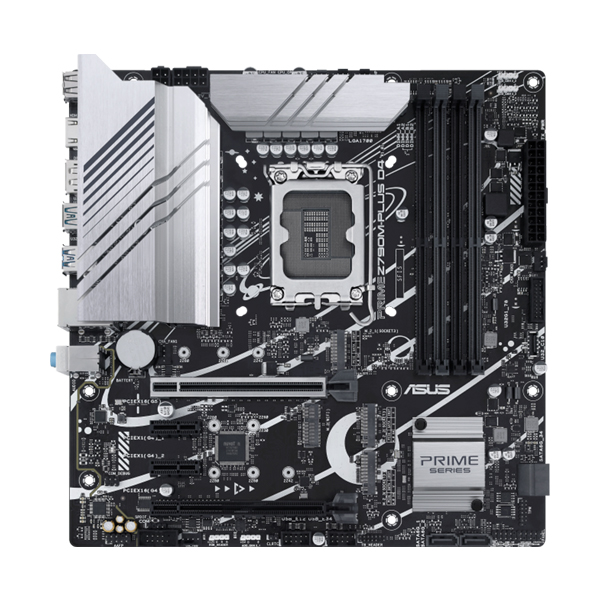

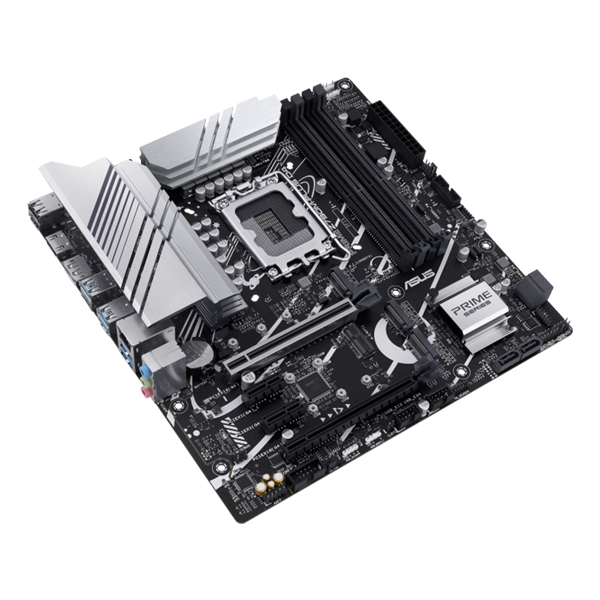

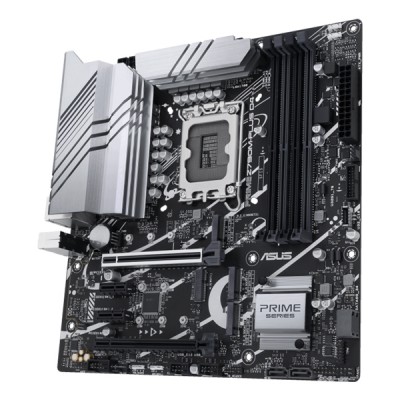

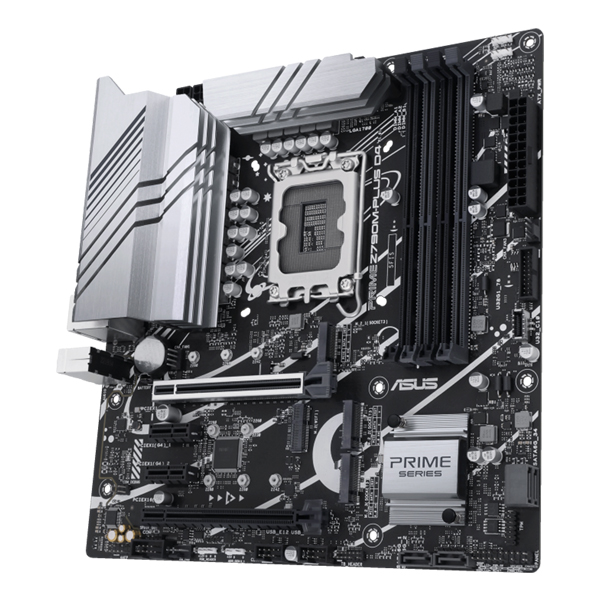

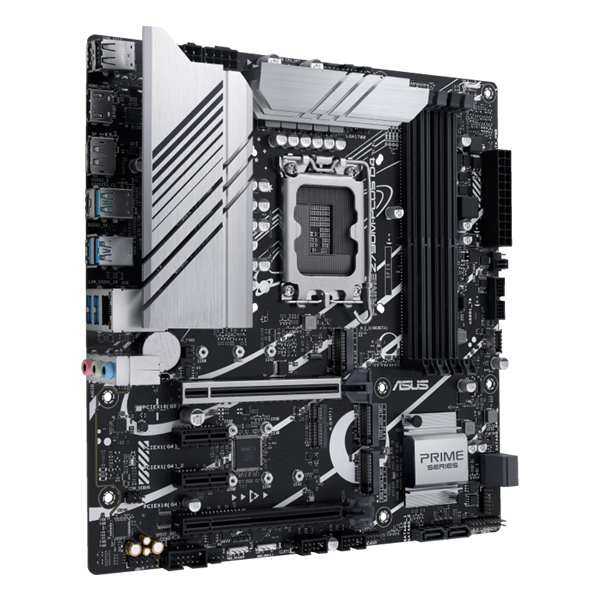

    ASUS PRIME Z790M-PLUS DDR4 mATX Motherboard

    Item #8052
    Brand
    : Asus
    Part #
    : 90MB1D20-M0EAY0
    Availability
    : Out Of Stock
  • Give A Rating

    • Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0 and DDR4 and out of box Windows 11 ready

    • Enhanced Power Solution: 10+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery

    • Comprehensive Cooling: Large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

    • Next Gen Connectivity: PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C connector, Thunderbolt 4 header support

    • Boosted Memory Performance: ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

    • PC DIY Friendly: PCIe 5.0 Safeslot, Q-LED Code

    ASUS PRIME Z790M-PLUS DDR4 mATX Motherboard

    PLUS D4 Z790M-PLUS D4

    ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

    FLEXIBILITY

    Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

    Intelligent Control

    ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

    AI Cooling ll

    AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

    COOLING

    PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

    VRM Heatsinks and Thermal Pads

    The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

    Cooler by Design

    PRIME Z790M-PLUS D4 features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

    Multiple Temperature Sources

    Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

    PERFORMANCE

    The PRIME Z790M-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

    Robust Power Design

    Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790M-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.

    ProCool Connectors

    Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

    Outstanding Audio

    Combined onboard features deliver elevated audio

    Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

    Specifications

    CPU

    • Intel® Socket LGA1700 for 13th Gen Intel® Coreâ„¢ Processors & 12th Gen Intel® Coreâ„¢, Pentium® Gold and Celeron® Processors*

    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    • Intel® Z790 Chipset

    Memory

    • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

    • Dual Channel Memory Architecture

    • Supports Intel® Extreme Memory Profile (XMP)

    • OptiMem II

    • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration

    Graphics

    • 1 x DisplayPort**

    • 1 x HDMI® port***

    • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    • **Supports max. 4K@60Hz as specified in DisplayPort 1.4.

    • ***Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    • Intel® 13th & 12th Gen Processors*

    • 1 x PCIe 5.0 x16 slot

    • Intel® Z790 Chipset

    • 1 x PCIe 4.0 x16 slot (supports x4 mode)

    • 2 x PCIe 4.0 x1 slots


    Storage

    • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

    • Intel® 13th & 12th Gen Processors

    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    • Intel® Z790 Chipset

    • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

    • 4 x SATA 6Gb/s ports

    • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

    Ethernet

    • 1 x Intel® 1Gb Ethernet

    • ASUS LANGuard

    Wireless & Bluetooth

    • M.2 slot only (Key E, CNVi & PCIe)*

    • *Wi-Fi module is sold separately.

    USB

    • Rear USB (Total 8 ports)

    • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    • 1 x USB 3.2 Gen 2 port (1 x Type-A)

    • 4 x USB 3.2 Gen 1 ports (4 x Type-A)

    • 2 x USB 2.0 ports (2 x Type-A)

    • Front USB (Total 7 ports)

    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports*

    • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

    Audio

    • Realtek 7.1 Surround Sound High Definition Audio CODEC*

    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    • - Supports up to 24-Bit/192 kHz playback

    • Audio Features

    • - Audio Shielding

    • - Premium audio capacitors

    • - Dedicated audio PCB layers

    • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Back Panel I/O Ports

    • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    • 1 x USB 3.2 Gen 2 port (1 x Type-A)

    • 4 x USB 3.2 Gen 1 ports (4 x Type-A)

    • 2 x USB 2.0 ports (2 x Type-A)

    • 1 x DisplayPort

    • 1 x HDMI®  port

    • 1 x Intel® 1Gb Ethernet port

    • 3 x Audio jacks

    Internal I/O Connectors

    • Fan and cooling related

    • 1 x 4-pin CPU Fan header

    • 1 x 4-pin CPU OPT Fan header

    • 1 x 4-pin AIO Pump header

    • 3 x 4-pin Chassis Fan headers

    • Power related

    • 1 x 24-pin Main Power connector

    • 1 x 8-pin + 12V Power connector

    • 1 x 4-pin + 12V Power connector

    • Storage related

    • 3 x M.2 slots (Key M)

    • 4 x SATA 6Gb/s ports

    • USB

    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    • Miscellaneous

    • 3 x Addressable Gen 2 headers

    • 1 x Aura RGB header

    • 1 x Clear CMOS header

    • 1 x COM Port header

    • 1 x Front Panel Audio header (AAFP)

    • 1 x M.2 slot (Key E)

    • 1 x S/PDIF Out header

    • 1 x SPI TPM header (14-1pin)

    • 1 x 20-3 pin System Panel header with Chassis intrude function

    • 1 x Thunderboltâ„¢ (USB4®) header

    Special Features

    • ASUS 5X PROTECTION III

    • - DIGI+ VRM (- Digital power design with DrMOS)

    • - LANGuard

    • - Overvoltage Protection

    • - SafeSlot Core+

    • - Stainless-Steel Back I/O

    • ASUS Q-Design

    • - Q-DIMM

    • - Q-LED Core

    • - Q-Slot

    • ASUS Thermal Solution

    • - VRM heatsink design

    • ASUS EZ DIY

    • - ProCool

    • Aura Sync

    • - Aura RGB header

    • - Addressable Gen 2 headers

    Software Features

    • ASUS Exclusive Software

    • Armoury Crate

    • - Aura Sync

    • - Fan Xpert 4 (with AI Cooling II)

    • - Power Saving

    • AI Suite 3

    • - TurboV EVO

    • - DIGI+ VRM

    • - PC Cleaner

    • ASUS CPU-Z

    • Norton 360 Deluxe (60 Days Free Trial)

    • WinRAR

    • UEFI BIOS

    • ASUS EZ DIY

    • - ASUS CrashFree BIOS 3

    • - ASUS EZ Flash 3

    • - ASUS UEFI BIOS EZ Mode

    BIOS

    • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

    Manageability

    • WOL by PME, PXE

    Accessories

    • Cables

    • 2 x SATA 6Gb/s cables

    • Miscellaneous

    • 1 x I/O Shield

    • 2 x Screw packages for M.2 SSD

    • Documentation

    • 1 x User guide

    Operating System

    • Windows® 11, Windows® 10 64-bit

    Form Factor

    • mATX Form Factor

    • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
