NVIDIA Ada Lovelace Streaming Multiprocessors : Up to 2x performance and power efficiency
4th Generation Tensor Cores : Up to 2X AI performance
3rd Generation RT Cores : Up to 2X ray tracing performance
Axial-tech fans scaled up to deliver 23% more airflow
Dual Ball Fan Bearings last up to twice as long as conventional designs
Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

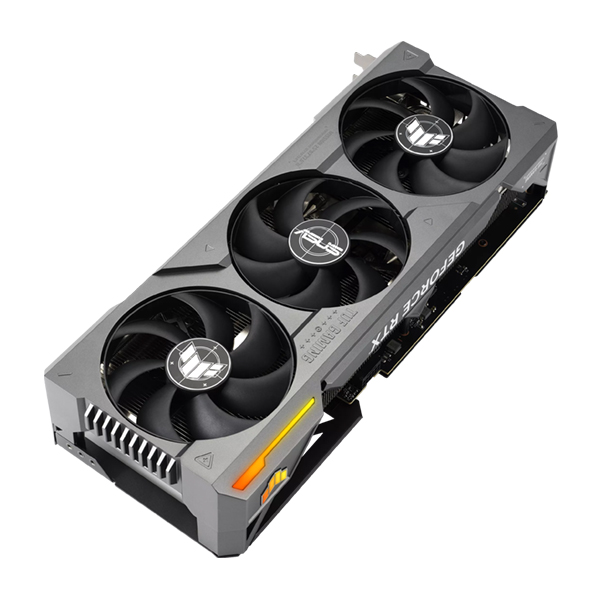

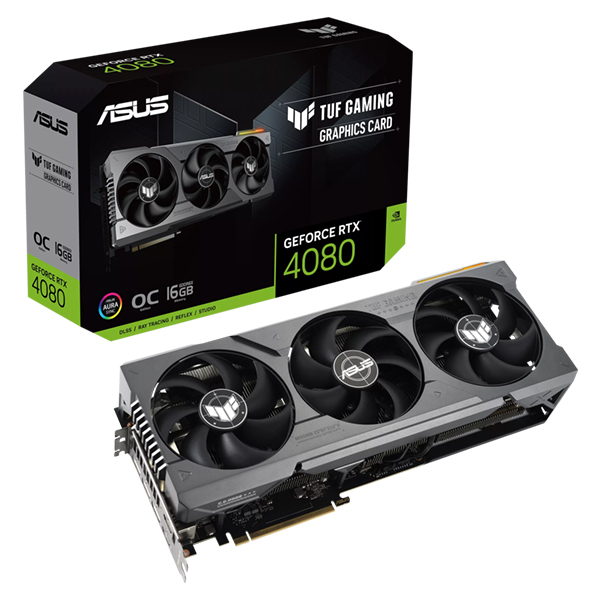

ASUS TUF Gaming GeForce RTX® 4080 16GB GDDR6X OC Edition optimized inside and out for lower temps and durability.
ARMED FOR FLOW
The NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX® 4080.

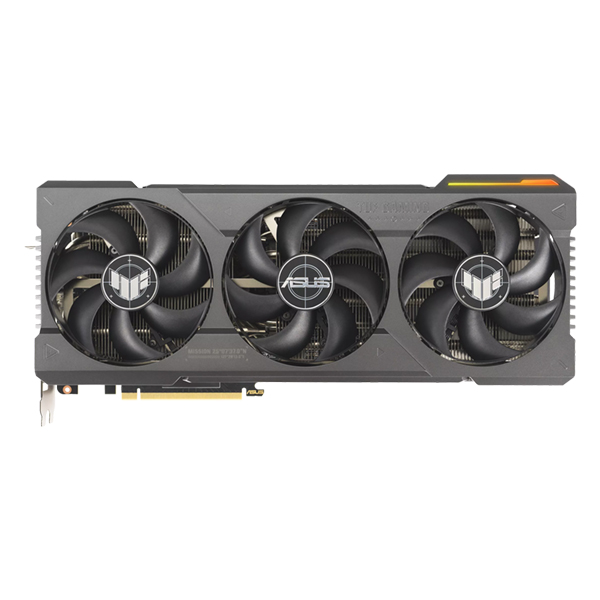

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
As the fans of the graphics card spin, their rotational directions are highlighted
Phase That Blaze
A generously sized heatsink efficiently soaks up heat from the GeForce RTX 4080 GPU, allowing it to be whisked away by the three Axial-tech fans.
Military-grade 20K Capacitors
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

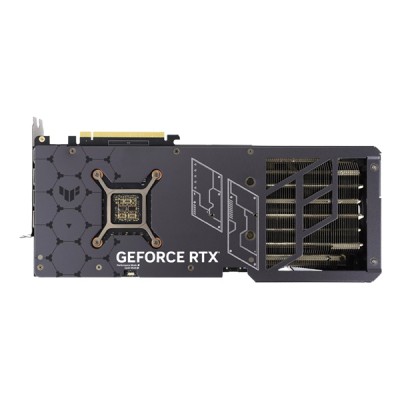

A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation.
Lock, load, and let the performance flow
The GeForce RTX 4080 gloriously presented on a backdrop of low noise and rugged durability.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Graphics card holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
Pair with a PSU
Check out our PSU landing page to learn more about how we’re pushing the industry forward and use our wattage calculator to estimate how much power you’ll need to fuel your next rig.
Graphic Engine : NVIDIA® GeForce RTX® 4080
Bus Standard : PCI Express 4.0
OpenGL : OpenGL®4.6
Video Memory : 16GB GDDR6X
Engine Clock : OC mode: 2625 MHz
Default mode: 2595 MHz(Boost Clock)
CUDA Core : 9728
Memory Speed : 22.4 Gbps
Memory Interface : 256-bit
Resolution : Digital Max Resolution 7680 x 4320
Interface : Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support : No
Accessories : 1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Thank you Card
Dimensions : 348.2 x 150 x 72.6 mm
Recommended PSU : 750W
Power Connectors : 1 x 16-pin
Slot : 3.65 slot
AURA SYNC : ARGB
