NVIDIA Ada Lovelace Streaming Multiprocessors : Up to 2x performance and power efficiency
4th Generation Tensor Cores : Up to 2X AI performance
3rd Generation RT Cores : Up to 2X ray tracing performance
Powered by GeForce RTX™ 4080 16GB
Integrated with 16GB GDDR6X 256-bit memory interface
WINDFORCE Cooling System
Protection metal back plate
CORE CLOCK : 2520 MHz (Reference Card: 2505 MHz)

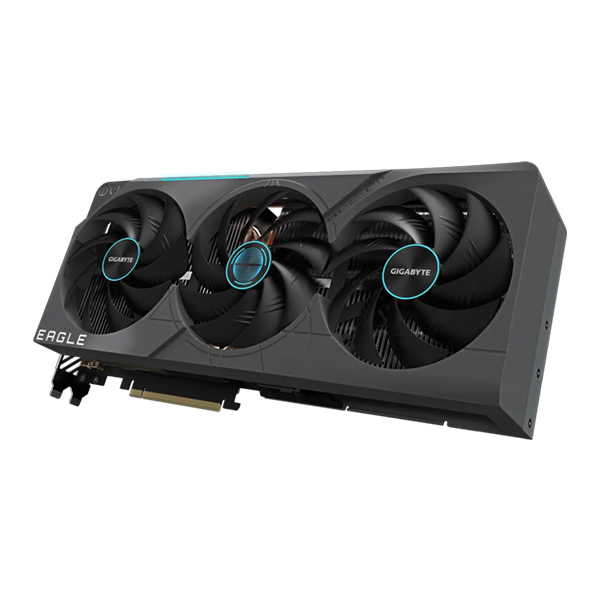

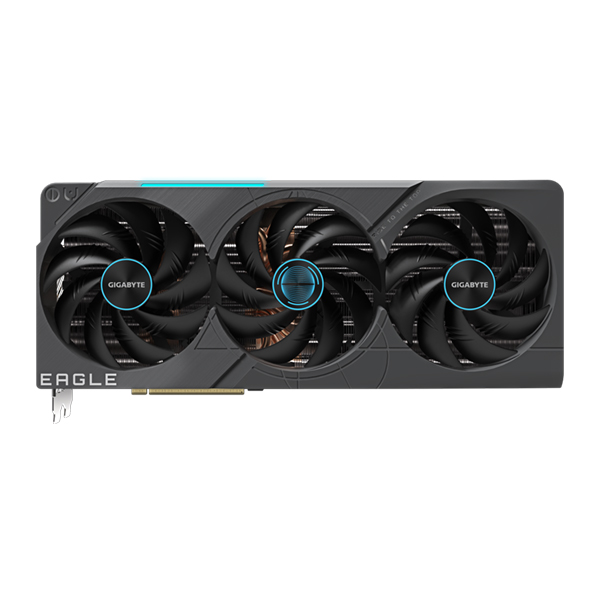

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Extended heatsink allows air to pass through, providing better heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIAL

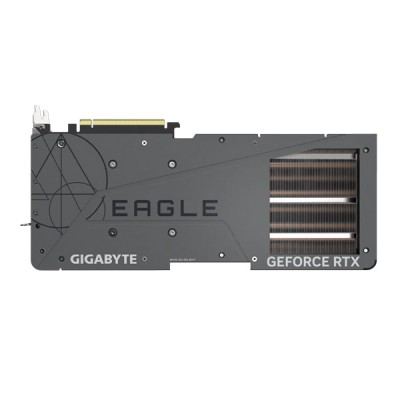

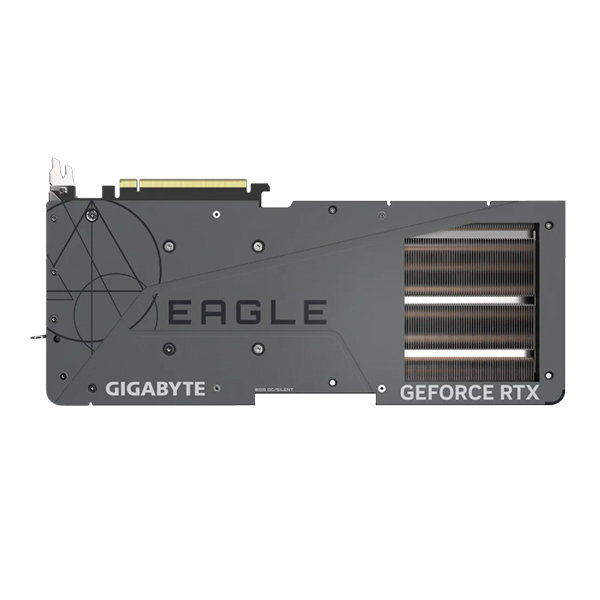

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Graphics Processing : GeForce RTX™ 4080
Core Clock : 2520 MHz (Reference Card: 2505 MHz)
CUDA® Cores : 9728
Memory Clock : 22.4 Gbps
Memory Size : 16 GB
Memory Type : GDDR6X
Memory Bus : 256 bit
Card Bus : PCI-E 4.0 x 16
Digital max resolution : 7680x4320
Multi-view : 4
Card size : L=342 W=150 H=70 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 850W
Power Connectors : 16 Pin*1
Output : DisplayPort 1.4a *3
HDMI 2.1 *1
1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
4. One 16 pin to triple 8-pin power adaptor
