NVIDIA Ada Lovelace Streaming Multiprocessors : Up to 2x performance and power efficiency
4th Generation Tensor Cores : Up to 2X AI performance
3rd Generation RT Cores : Up to 2X ray tracing performance
IceStorm 2.0 Advanced Cooling
FREEZE Fan Stop, Active Fan Control, Dual BIOS
SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
Bundled with GPU Support Bracket
All-new FireStorm Utility

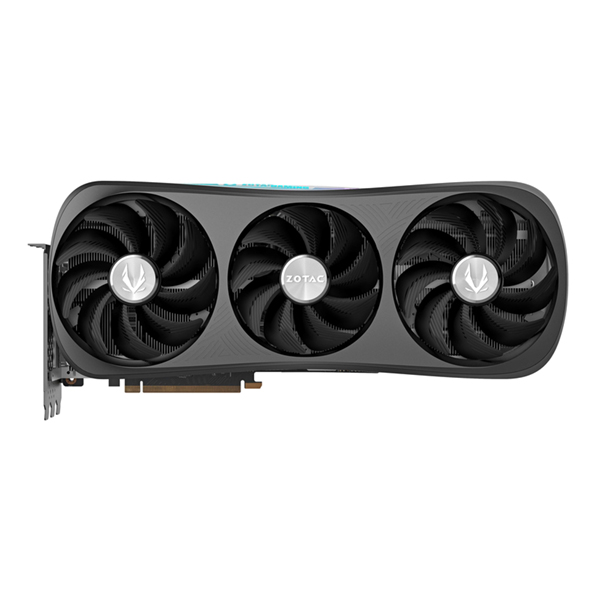

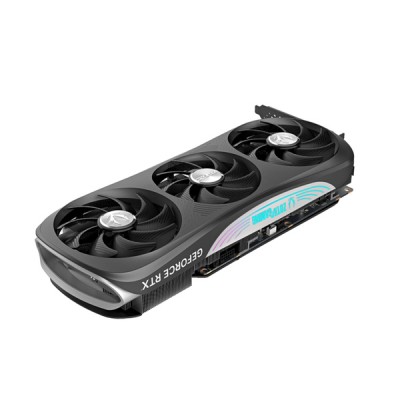

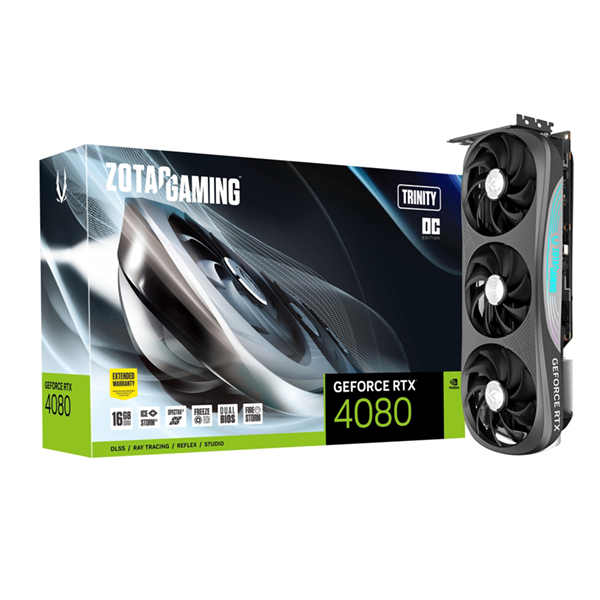

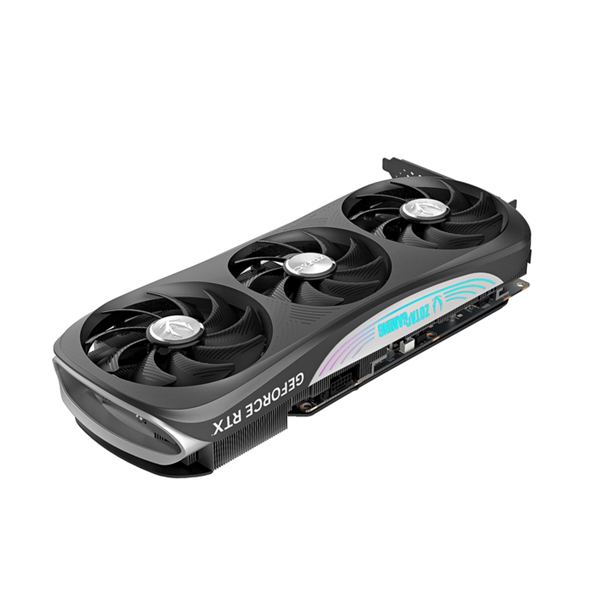

Leveraging an all-new aerodynamic inspired design, the ZOTAC GAMING GeForce RTX 4080 16GB Trinity OC utilizes the world’s most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. Using cutting-edge cooling technologies derived from the flagship model, the Trinity OC packs the punch to offer gamers the needed blistering FPS in the latest titles.
IMPROVED AIRFLOW DYNAMICS
The fan height is significantly increased to ensure optimal airflow. Backed by a deeper fan shroud design to help generate a more focused airstream intake, each fan rotation pushes more cool air down and keeps it onto the heat spreader longer for improved temperatures.
UP TO 60% TALLER FAN
compared to last generation
DEEPER FAN SHROUD
enabling more focused and stable airflow
MORE POWERFUL HEATSINK
Filling the massive 3.5-slot footprint is a colossal aluminum fin stack ready for the most intense thermal challenges.
UP TO 30% THICKER HEATSINK
compared to last generation
9 precision-machined copper heatpipes are shifted into a vertical layout for increased surface contact with the GPU, extracting more heat to disperse along the full length of the heatsink.
Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heatpipe is more efficient at transferring heat.
With ample designed ventilation paths, airflow can maneuver and exhaust from every side to reduce trapped heat.
ZOTAC GAMING brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.
CALMING THE STORM
A counter-rotating center fan helps reduce air turbulence, minimizing noise with a smoother airflow. Further noise refinement comes with the assistance of mounted anti-vibration pads.
DESIGNED FOR DURABILITY
Built to last and perform, the ZOTAC GAMING GeForce RTX 4080 boasts a strong foundation for peak performance.
The new cooling fans feature a dual ball bearing design that reduces rotational friction and further prolongs fan lifespan.

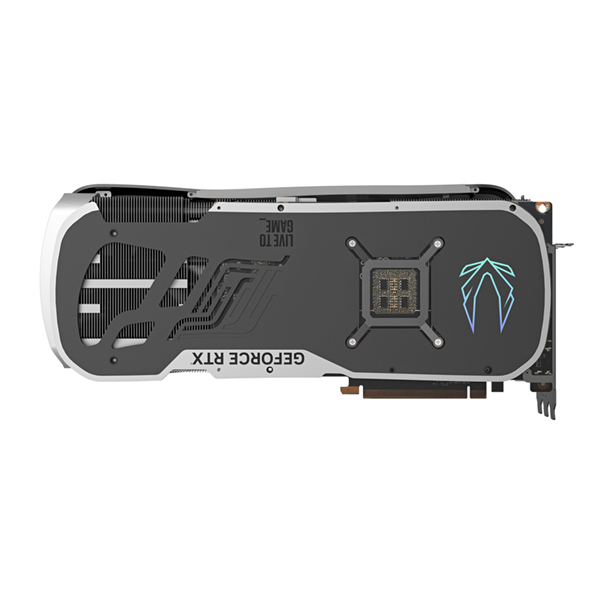

Take advantage of a bundled metal support stand for additional GPU reinforcement.
SPECTRA ALL AROUND
ZOTAC GAMING’s dedicated lighting system, SPECTRA 2.0, enables vibrant LED light colors and unique animated options powered by Addressable RGB LEDs.
5-ZONE RGB LIGHTING
Customize different modes and colors for the 5 lighting zones at the front, sides and rear of the graphics card, or synchronize the whole.
The surreal beauty of the large RGB presence on top is enhanced by an iridescent and translucent finish that allows lighting paths underneath to shine through.
EXPAND THE AMBIANCE
The featured 3-pin RGB header empowers your graphics card to synchronize lighting with a compatible RGB LED strip for added aesthetics and customization.
NEW. SIMPLE. INTUITIVE.
The all-new ZOTAC GAMING FireStorm Utility for 40 Series features an entirely re-designed interface that makes complex fine-tuning tasks easier to do. The new software comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, SPECTRA RGB lighting effects, and one-click BIOS switching.
GPU : GeForce RTX 4080 16GB
CUDA cores : 9728
Video Memory : 16GB GDDR6X
Memory Bus : 256-bit
Engine Clock : Boost: 2520 MHz
Memory Clock : 22.4 Gbps
PCI Express : 4.0 16x
Display Outputs : 3 x DisplayPort 1.4a (up to 7680x4320@60Hz)
1 x HDMI® Connector*
*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification
HDCP Support : 2.3
Multi Display Capability : Quad Display
Recommended Power Supply : 750W
Power Consumption : 320W
Power Input : 1 x 12VHPWR
DirectX : 12 Ultimate
OpenGL : 4.6
Cooling : IceStorm 2.0
Slot Size : 3.5 slot
SLI : N/A
Supported OS : Windows 11 / 10 (64-bit, v1809 November 2018 or later)
Card Length : 356.1mm x 150.1mm x 71.4mm / 14" x 5.9" x 2.8"
Accessories : GPU Support Stand
3-pin RGB Header Cable
3x 8-pin-to-12VHPWR cable
