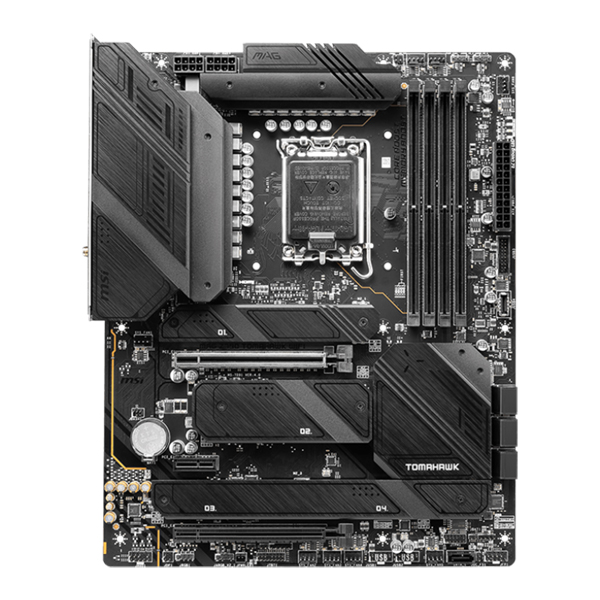

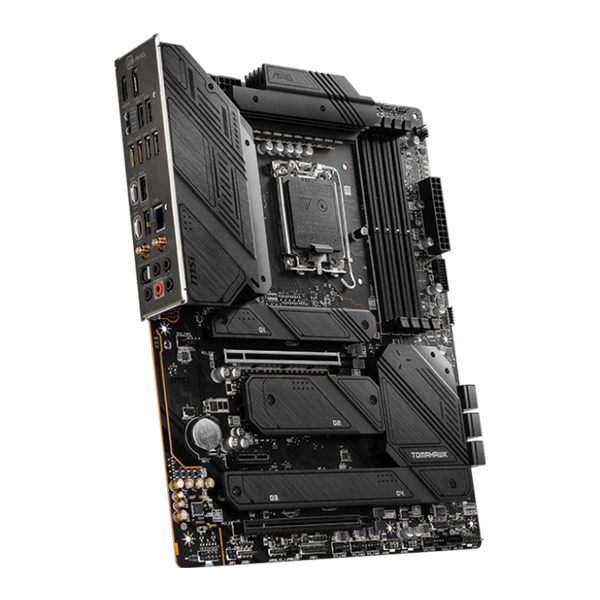

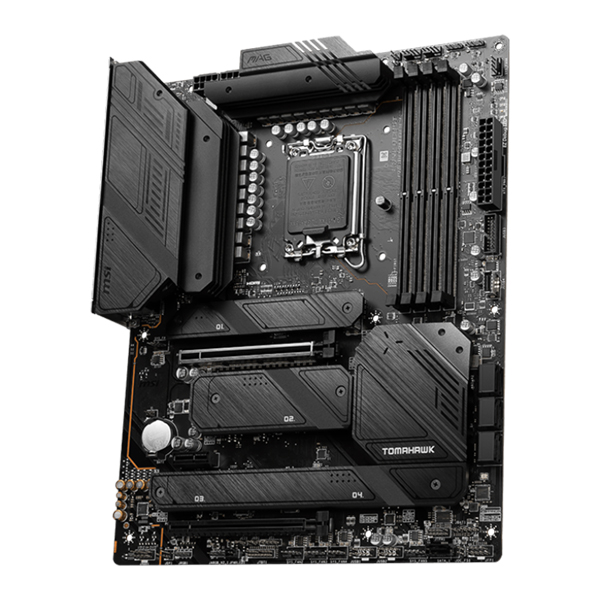

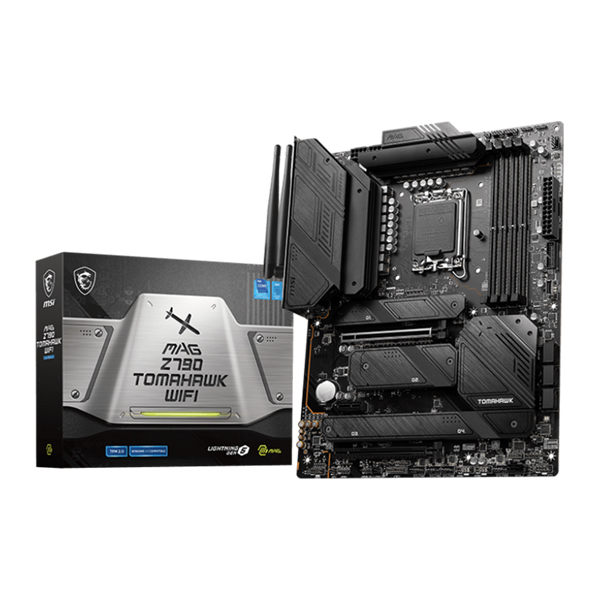

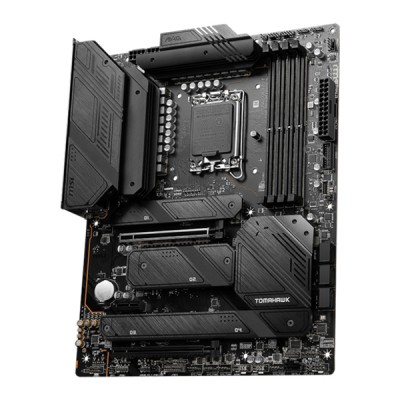

MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

16+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a premium VRM design built with a total of 16+1+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MAG Z790 TOMAHAWK WIFI DDR4 is ready for the challenge of high-end processors.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG Z790 TOMAHAWK WIFI is ready to deliver the world class memory performance.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Opt-in to Cyber Safety with Norton 360 Deluxe

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E

• Bluetooth 5.3

• 2.5G LAN

Specifications

• Chipset   :  INTEL Z790

• CPU SUPPORT   :  Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors

• Memory  :   4x DDR5, Maximum Memory Capacity 128GB

                                  Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

                                    Max. overclocking frequency:

                                                                                    1DPC 1R Max speed up to 7200+ MHz
                                                                                    1DPC 2R Max speed up to 6600+ MHz
                                                                                    2DPC 1R Max speed up to 6400+ MHz
                                                                                    2DPC 2R Max speed up to 5600+ MHz
                                                                                    Supports Intel® XMP3.0 OC
                                                                                    Supports Dual-Controller Dual-Channel mode
                                                                                    Supports non-ECC, un-buffered memory

• Onboard Graphics   :  1x HDMI

                                                     1x DisplayPort

                                                      Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

                                                      Support DP 1.4, maximum resolution of 8K 60Hz*
                *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT   :   2x PCI-E x16 slot

                                                        Supports x16/x4
                                                        1x PCI-E x1 slot
                                                        PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
                                                        PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
                                                        PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

• Storage   :  4x M.2 slot

                                    M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
                                    M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                    M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
                                    M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
                                    7x SATA 6G port

• RAID  :   Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

                            Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

        * SATA_A1_A2 do not support RAID function.

• USB  :  4x USB 2.0 (Front)

                            4x USB 3.2 Gen1 Type A (Rear)
                            2x USB 3.2 Gen1 Type A (Front)
                            4x USB 3.2 Gen2 Type A (Rear)
                            1x USB 3.2 Gen2 Type C (Rear)
                            1x USB 3.2 Gen2 Type C (Front)
                            1x USB 3.2 Gen2x2 Type C (Rear)

• LAN  :   Intel® 2.5Gbps LAN

• WIRELESS / BLUETOOTH   : Intel® Wi-Fi 6E

                                                      The Wireless module is pre-installed in the M.2 (Key-E) slot
                                                      Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
                                                      Supports 802.11 a/ b/ g/ n/ ac/ ax
                                                      Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 10 build 21H1 and Windows 11.

• Audio   :  Realtek® ALC4080 Codec

                            7.1-Channel USB High Performance Audio
                            Supports S/PDIF output
                            Supports up to 32-Bit/384 kHz playback on front panel

• Internal I/O   :  1x Power Connector(ATX_PWR)

                                        2x Power Connector(CPU_PWR)
                                        1x CPU Fan
                                        1x Pump Fan
                                        6x System Fan
                                        2x Front Panel (JFP)
                                        1x Chassis Intrusion (JCI)
                                        1x Front Audio (JAUD)
                                        1x TBT connector (JTBT, supports RTD3)
                                        1x Tuning Controller connector(JDASH)
                                        3x Addressable V2 RGB LED connector (JARGB_V2)
                                        1x RGB LED connector(JRGB)
                                        1x TPM pin header(Support TPM 2.0)
                                        4x USB 2.0
                                        2x USB 3.2 Gen1 Type A
                                        1x USB 3.2 Gen2 Type C

• LED FEATURE   :  4x EZ Debug LED

• BACK PANEL PORTS


                                                    DisplayPort 1.4

                                                    USB 3.2 Gen 1 5Gbps Type-A

                                                    USB 3.2 Gen 2 10Gbps Type-A

                                                    2.5G LAN Port,

                                                    HD Audio Connectors

                                                    HDMI 2.1 Port

                                                    Clear CMOS Button

                                                    Flash BIOS Button

                                                    USB 3.2 Gen 2 10Gbps Type-C

                                                    USB 3.2 Gen 2x2 20Gbps Type-C

                                                    Wi-Fi / Bluetooth Antenna

                                                    Optical S/PDIF OUT

• OPERATING SYSTEM   :  Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB Dimension : ATX

                                             243.84mmx304.8mm
