Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design : 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution : Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB : 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience : PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2 : Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution : Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience

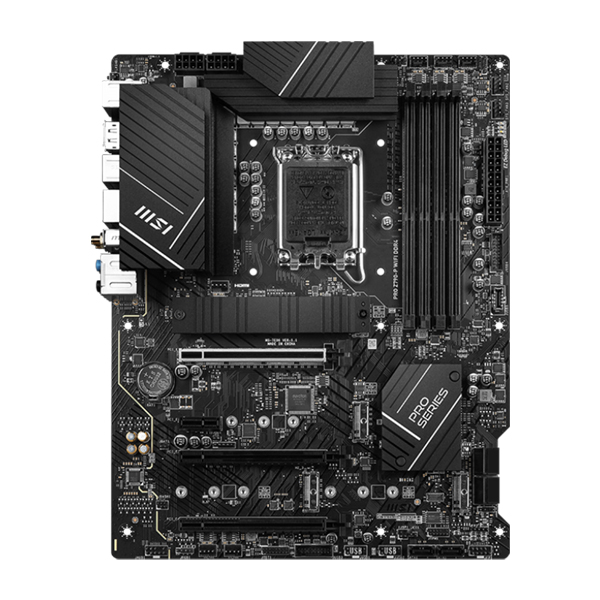

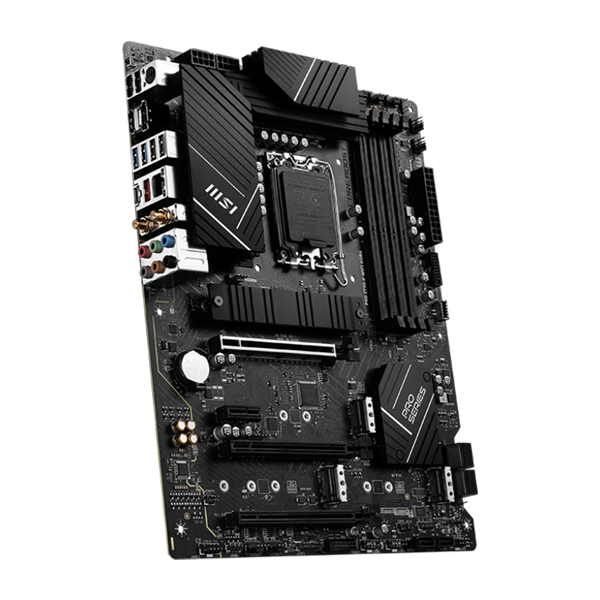

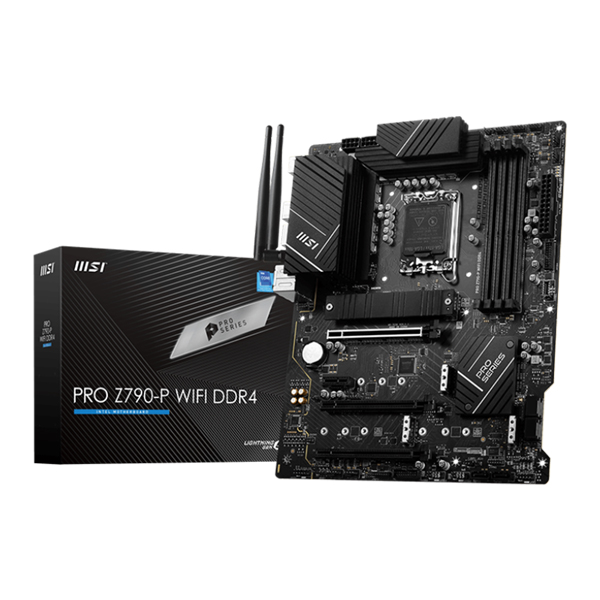

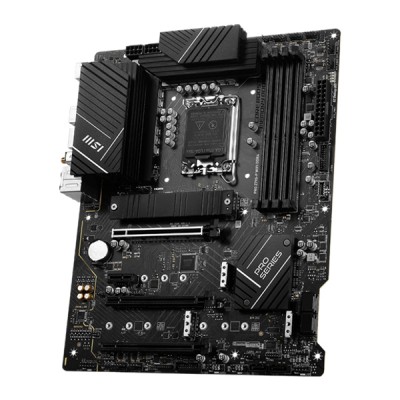

PRO Z790-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset : INTEL Z790
LGA 1700
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
1x DisplayPort
Support HDMIâ„¢ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
7.1-Channel High Definition Audio
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
USB 2.0
HDMIâ„¢
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension : ATX
243.84mmx304.8mm
