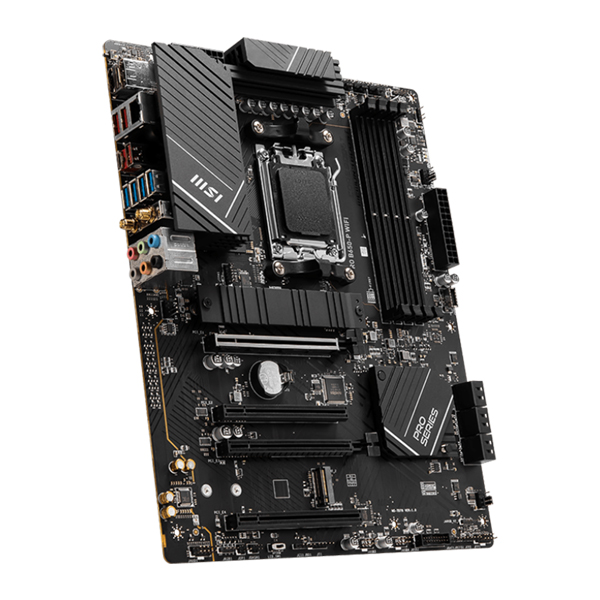

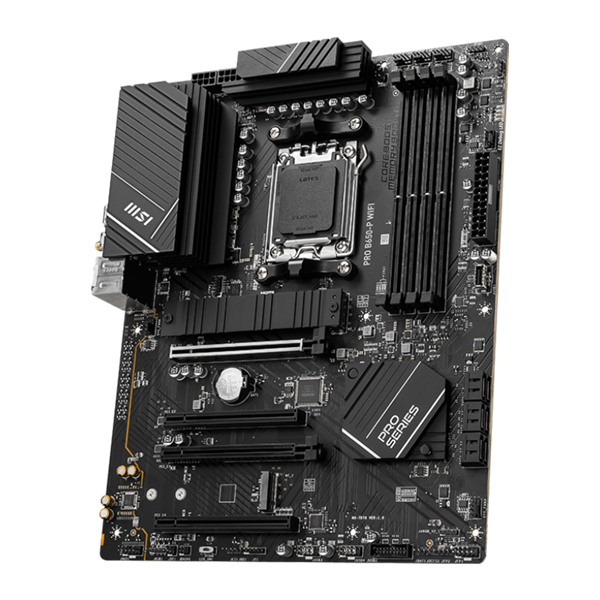

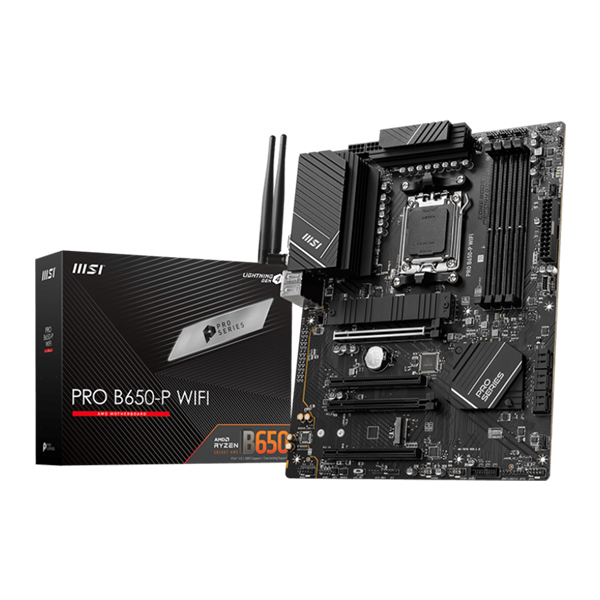

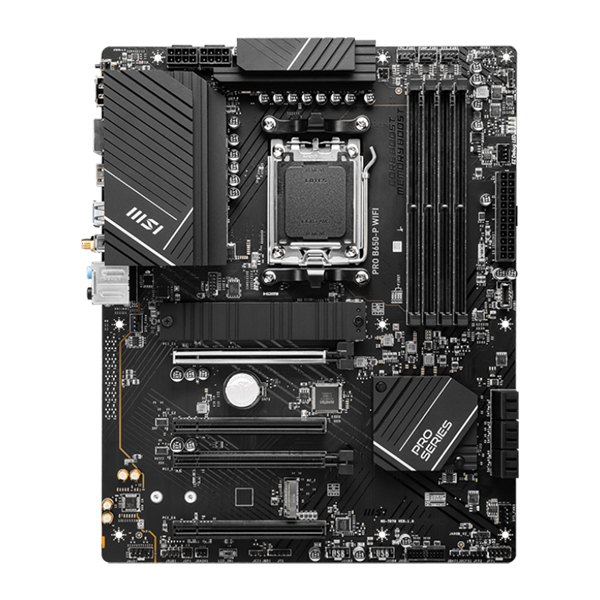

MSI PRO B650-P WIFI DDR5 AM5 ATX Motherboard

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Specifications

• Chipset  :   AMD B650

• CPU SUPPORT   :  Supports AMD Ryzenâ„¢ 7000 Series Desktop Processors

                                               Socket AM5

• Memory   :  4x DDR5, Maximum Memory Capacity 128GB

                                   Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz

                                   Max. overclocking frequency:
                                    • 1DPC 1R Max speed up to 6400+ MHz
                                    • 1DPC 2R Max speed up to 5800+ MHz
                                    • 2DPC 1R Max speed up to 6000+ MHz
                                    • 2DPC 2R Max speed up to 4000+ MHz

                                    Supports Dual-Channel mode

                                    Supports non-ECC, un-buffered memory

                                    Supports AMD EXPO

• Onboard Graphics   :  1x HDMIâ„¢

                                                     1x DisplayPort
                                                     Support HDMITM 2.1, maximum resolution of 4K 60Hz*
                                                     Supports DP1.4, maximum resolution of 4K 60Hz*
           *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT   :  4x PCI-E x16 slot

                                                     PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
                                                     PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
                                                     PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
                                                     PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)

• Multi-GPU  :   Supports AMD MULTI-GPU

• Storage  :   2x M.2 slot

                                  M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
                                  M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
                                  6x SATA 6G port

• RAID  :   Supports RAID 0 and RAID 1 for SATA storage devices*

                             Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
           * SATA_A1~A4 do not support RAID function.

• USB   :  4x USB 2.0 (Front)

                            4x USB 3.2 Gen1 Type A (Rear)
                            2x USB 3.2 Gen1 Type A (Front)
                            3x USB 3.2 Gen2 Type A (Rear)
                            1x USB 3.2 Gen2 Type C (Front)
                            1x USB 3.2 Gen2x2 Type C (Rear)

• LAN  :   Realtek® 8125BG 2.5G LAN

• WIRELESS / BLUETOOTH   :  AMD Wi-Fi 6E

                                                                    The Wireless module is pre-installed in the M.2 (Key-E) slot
                                                                    Supports MU-MIMO TX/RX
                                                                    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
                                                                    Supports 802.11 a/ b/ g/ n/ ac/ ax
                                                                    Supports Bluetooth® 5.2**
         * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
          ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

• Audio  :   Realtek® ALC897 Codec

                              7.1-Channel High Definition Audio

• Internal I/O  :   1x Power Connector(ATX_PWR)

                                        2x Power Connector(CPU_PWR)
                                        1x CPU Fan
                                        1x Pump Fan
                                        4x System Fan
                                        2x Front Panel (JFP)
                                        1x Chassis Intrusion (JCI)
                                        1x Front Audio (JAUD)
                                        1x Tuning Controller connector(JDASH)
                                        2x Addressable V2 RGB LED connector (JARGB_V2)
                                        2x RGB LED connector(JRGB)
                                        1x TPM pin header(Support TPM 2.0)
                                        4x USB 2.0
                                        2x USB 3.2 Gen1 Type A
                                        1x USB 3.2 Gen2 Type C

• LED FEATURE  :   4x EZ Debug LED

• BACK PANEL PORTS

                                             DisplayPort
                                             2.5G LAN
                                             USB 3.2 Gen 2 10Gbps (Type-A)
                                             USB 3.2 Gen 1 5Gbps (Type-A)
                                             Wi-Fi / Bluetooth
                                             Audio connectors
                                             Flash BIOS Button
                                             HDMIâ„¢
                                             USB 3.2 Gen 2 10Gbps (Type-A)
                                             USB 3.2 Gen 2x2 20Gbps (Type-C)

• OPERATING SYSTEM   :  Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB Dimension  :   ATX

                                                243.84mmx304.8mm
