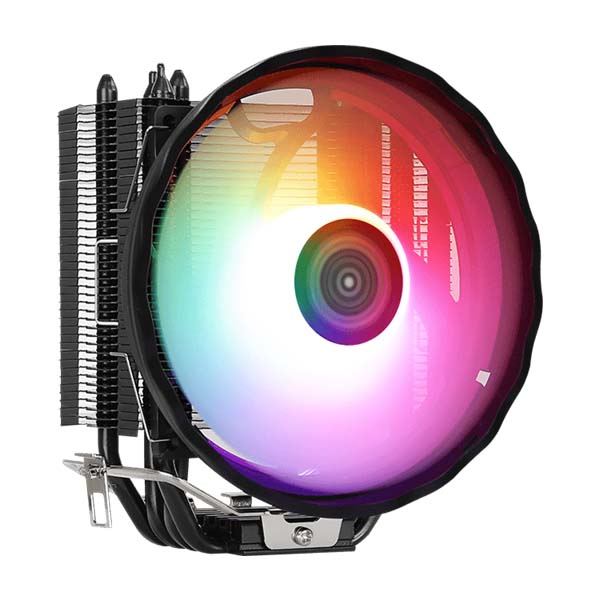

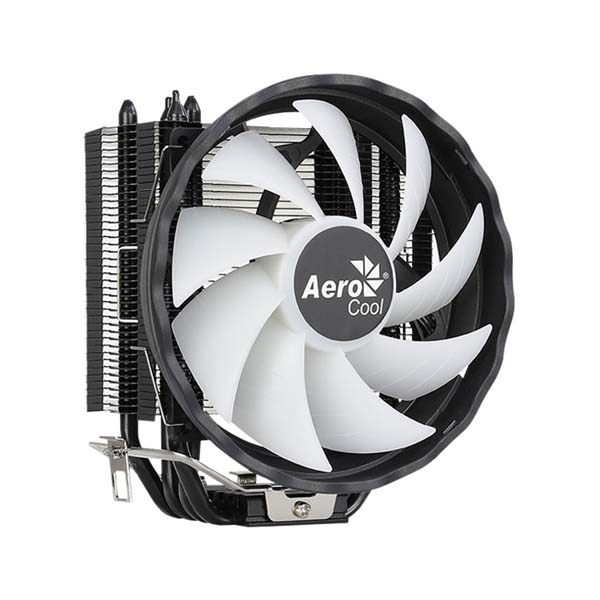

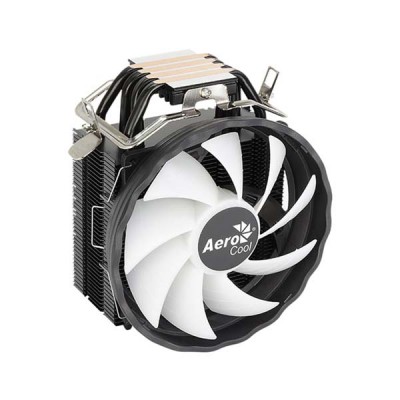

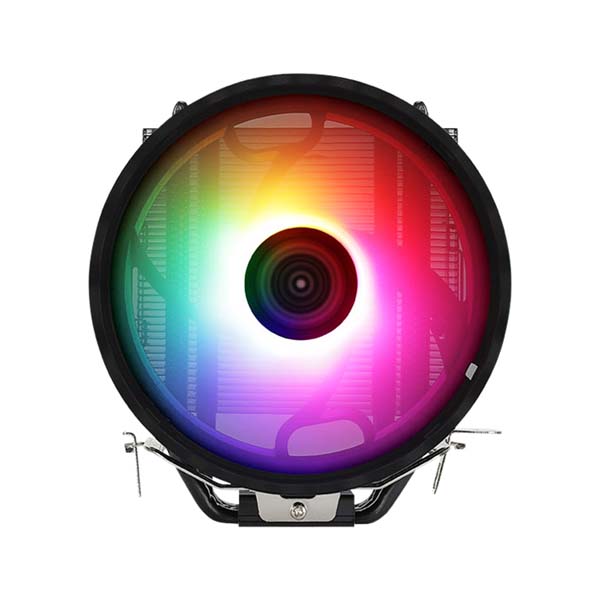

AEROCOOL RAVE 4 ARGB CPU Air Cooler - Black

PWM air cooling solution with a 12cm ARGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increases heat dissipation area and improves efficiency of dissipation.

PWM air cooling solution with 12cm ARGB fan with translucent fan blades

Compatible with Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion) or hubs (H66F)

Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities

Upgraded high efficiency fins for maximum thermal performance

Compatible with most current motherboard designs

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.

EQUIPPED WITH 12CM ARGB FAN

Comes equipped with a 12cm ARGB fan to add a stylish flair to your rig. Translucent fan blades allow you to fully appreciate the beauty of this cooler’s RGB lighting.

HEAT CORE TOUCH TECHNOLOGY (HCTT)

Four ultra-efficient thermal heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.

This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.

PWM HIGH-PRESSURE FAN

120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.

HIGH EFFICIENCY FINS

Upgraded high efficiency aluminum fins for maximum thermal performance.

Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities.

COMPATIBILITY

Compatible with most current motherboard designs.

Socket compatibility:

LGA 1200/115X/775

AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Specifications

• Model  : Rave 4 ARGB

• Base Material  : Aluminum block with HCTT Heat Core Touch Technology

• Fin Material  :  Aluminum

• Heat pipe : Dia. 6mm x 4

• Dimension  : 125 x 80 x 135mm

• TDP(Thermal Design Power)  : 130

Fan

• Speed  : 900-1800 rpm

• Connector  : PWM 4-Pin

• Dimension  : 120 x 120 x 25mm

• Bearing Type  : Hydraulic Bearing

• Started Voltage  : 5V

• Rated Voltage  : 12V

• Rated Current  : 0.5 A

• Power Consumption  : 6 Watts

• Air Pressure  : 0.6-1.6 mm-H2O

• Air Flow  : 24.1-58.0 CFM

• Noise  : 18-27 dBA

• MTBF (Mean Time Before Failure)  : 60000 hrs.

• Socket  : LGA 1700 / 1200 / 115X / 775

                        AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

          For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.

• EAN Code  : 4711099472253
